Quick Details

  • Light Source: LED
  • Item Type: Tunnel Lights
  • LED Light Source: Bridgelux
  • Input Voltage(V): AC100-277
  • Lamp Power(W): 100
  • Lamp Luminous Flux(lm): 9000
  • Lamp Luminous Efficiency(lm/w): 90
  • CRI (Ra>): 72
  • Color Temperature(CCT): 5700-6500K
  • Working Temperature(℃): -40 - 50
  • Working Lifetime(Hour): 100000
  • Lamp Body Material: Aluminum Alloy
  • IP Rating: IP68
  • Certification: CE, Energy Star, RoHS
  • Warranty(Year): 5
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: CESP
  • Model Number: CES-J100-B-RF-L
  • color: silver grey
  • Heat index: 2.0
  • reflector: Yes,optional
  • light cover: tempered glass
  • product size: 400*400*185mm
  • power factor: 98%

Packaging & Delivery

Packaging Details strong outside carton with formed polyfoam inside
Delivery Time 15-20 days after receipt of payment;samples will be in 7 days.


1)use up to 80% less energy
2)Ideal replacement for 380w Metal Halide
3)lifespan up to 100,000hrs
4)CE,RoHS certified

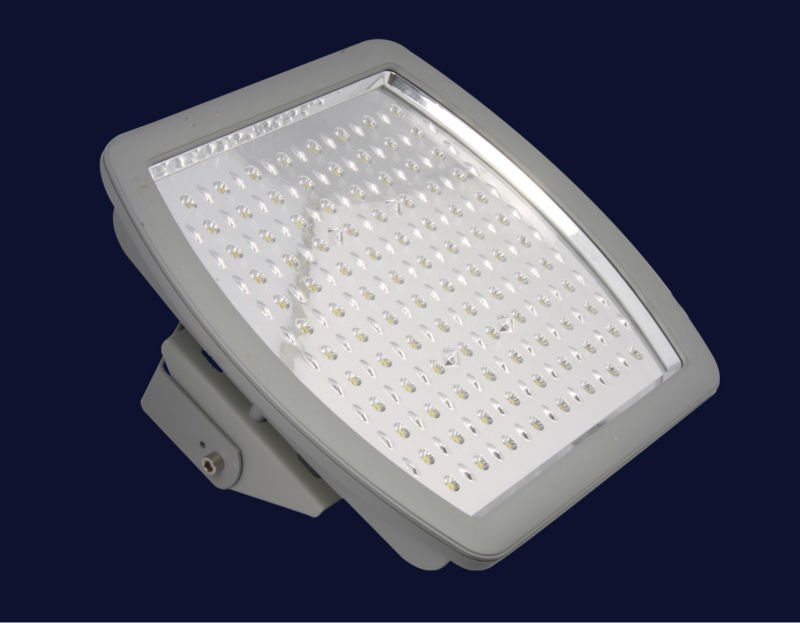

100w low price led tunnel light from China


• less energy,better illumination

Jaykal's patented 120W LED Wall Pack & Canopy Fixturs were engineered to replace up to a 450W Metal Halide Wall Pack or Canopy Fixture while delivering best-in-class lumen output at >70CRI.


 Go Green,Save Green

A Jaykal 120W LED Wall Pack & Canopy Fixture consumers up to 80% less energy than a tranditional fixture,saving both money and the environment.


 First in class lifespan

We can promise at least 50,000hours of use,usually,it's lifespan will be up to 100,000 hours.


 Superior efficiency,color rendering and power factor.

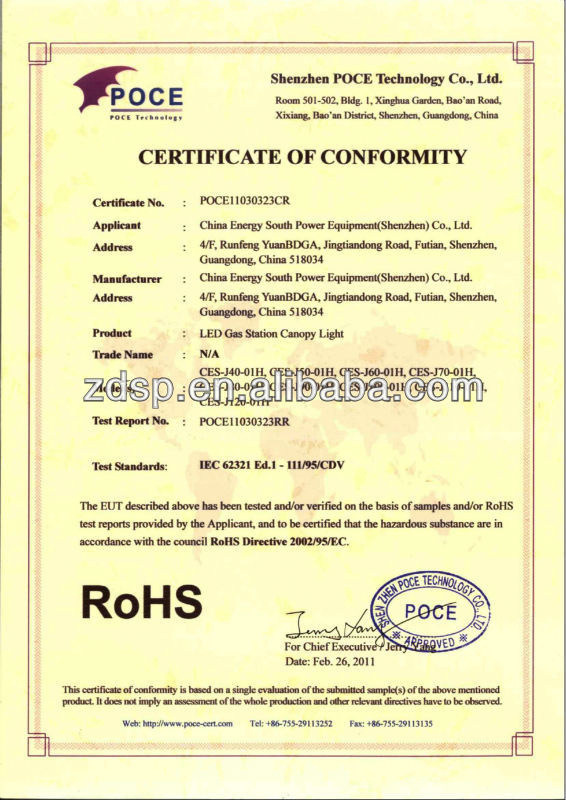

 UL,CUL,DCL,CE and RoHS certified.


 Warranty period: 5 years in standard.


 Famous brand of China in led lights.

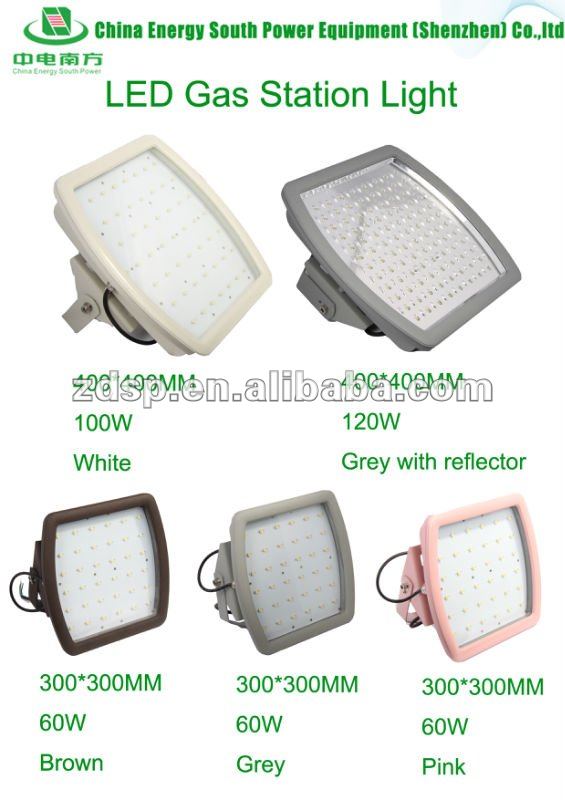

Product seriesLED Tunnel Light


equal to 450w Metal Halide Lampequal to 380w Metal Halide Lampequal to 320w Metal Halide Lampequal to 150w Metal Halide Lamp
Input VoltageAC100-277vAC100-277v
Frequency Range50/60HZ   50/60HZ50/60HZ  50/60HZ
LED BrandBridgelux   Bridgelux  Bridgelux    Bridgelux
driverMeanwell HLG SeriesMeanwell HLG Series
LED quantity117pcs96pcs60pcs60pcs
IP ratingIP68IP68IP68IP68
Power factor0.98   0.980.980.98
Lumen90lm/w90lm/w90lm/w 90lm/w
W/O reflectoroptional optional optional  optional
Beam Angle60°x30°(RF)
working temperature-40°C to 50°C-40°C to 50°C
PCB heat index2.
product size400*400*185 mm300*300*185 mm

Warm White: 2700 - 4000k

Cool White: 5500 - 6500k

CRI≥70%   ≥70%   ≥70%   ≥70%
 lifespan50,000-100,000 hrs50,000-100,000 hrs
MaterialDie-casting Alumium and tempered glass    Die-casting Alumium and tempered glass
 outside carton 460*460*240mm   370*370*240mm
 G.W./N.W.(kgs) 12.50kgs/11.50kgs   8.50kgs/7.50kgs
