120W led petrol station light replace 400W HPS petrol station light

FOB Reference Price:Get Latest Price
US $150-300 / Pieces | 1 Piece/Pieces led canopy light sample available (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
High Bay Lights
LED Light Source:
Bridgelux
Warranty(Years):
5
Input Voltage(V):
AC100-240V
Lamp Luminous Flux(lm):
10000
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra>):
75
Color Temperature(CCT):
Cool White
Working Temperature(℃):
-30 - 50
Working Lifetime(Hour):
100000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP68
Certification:
C-tick, CCC, CE, CQC, EMC, FCC, LVD, PSE, RoHS, SAA, UL
Place of Origin:
Guangdong, China (Mainland)
Model Number:
CES-J120
Name:
Gas station led light
Application:
gas station, petrol station,tunnel, warehous, parking place.
Color:
White
Life:
50,000 ~100,000hrs
Lamp Power(W):
100
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
400*400*260MM,
13.1KG,in cartons
Port
Shenzhen
Lead Time :
8 workdays

UL DLC ATEX gas station led lights , petrol station led lights





Product Description







Why CESP?





1. For hazardous area lighting products like GAS STATION LED CANOPY LIGHTS, it is fairly important to choose specialized manufacturer because the security for hazardous area lighting is essential.



2. CESP is a specilized LED EXPLOSION PROOF LIGHT manufacturer in the passed 8 years,  with CE/ROHS/UL/CUL/DLC/SAA/PSE certification, and most important, ATEX and CNEX explosion proof certification.



3. Besides, we'll soon get the UL844(class 1 division 2) explosion proof certification, which means we'll be the only manufacturer who owns these qualifications at the same time.

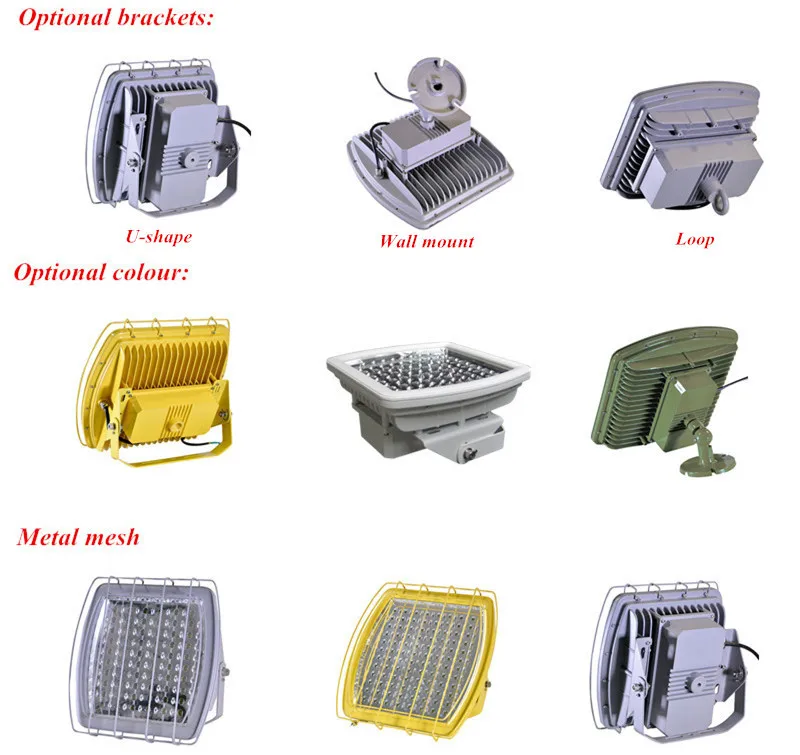

4. By now we have a whole series LED CANOPY LIGHTS (CES-J), including 20W-185W wide power range and various installation brackets, and also customizable product color. can satisfy most of the hazardous area lighting applications.







additional service.jpg











 Key features;



-Die-cast aluminum by 1800 Ton of pressure to make the body strong enough.

-Powder Coated (similar to vehicles coating) and holder are cover with a thin layer of Zink, color can be ---customizable.

-IP 68, highest rating of protection.

-Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.

-5 year warranty.

-Best driver: Meanwell HLG driver.



Main Technology

LED Chips:

BridgeLux LED chips packaged professionally ensure the light source kept in optimum performance; mirror surface processed technology collect and reflect the invalid light into efficiency; use of lens controls the horizontal and vertical beam angle actively.

Power Supply:

To use world’s leading brand MeanWell power supply ensure the fixture works in stableness with better performance and enjoy its long life; power supply is CE RoHS TUV CB certificated.

Housing

 High pressure intergrated die cast aluminum, perfect protection

 1suction cup seal







Specification:











Item No

Product Specification

Certificate for

Europe

Certificate for

US&Canada

Rated Power

Size(mm)

With reflector(RF) or not

Beam

IP

Angle

Rating

CES-J200

185W

400*400*185mm

NO

120°x120°

IP68

CE/ROHS

UL/CUL/DLC

CES-J150

150W

400*400*185mm

NO

120°x120°

IP68

CE/ROHS

UL/CUL

CES-J120

120W

400*400*185mm

Optional

60°x30°(RF)
/120°x120°

IP68

ATEX/CE/ROHS

UL/CUL

CES-J100

100

300*300*175mm

NO

120°x120°

IP68

ATEX/CE/ROHS

UL/CUL/DLC

CES-J80

80W

300*300*175mm

Optional

60°x30°(RF)
/120°x120°

IP68

ATEX/CE/ROHS

UL/CUL

CES-J40S

40W

200*200*270mm

Optional

60°x30°(RF)
/120°x120°

IP68

ATEX/CE/ROHS

UL/CUL/DLC







LED Specification

Driver  Specification

Item No.

LED QTY

Lumens

Lumen

CCT

CRI

Input V

Input

Current

PF

THD

Type

Lm/W

CES-J200

156 pcs

16550

90Lm/W

Cool White:

5700-6500K

>70

AC100-277V

350mA

>0.98

<10%

HLG MEANWELL driver

with IP68 protective

Aluminum Housing

CES-J150

144 pcs

13500

90Lm/W

>70

AC100-277V

350mA

>0.98

<10%

CES-J120

96 pcs

10800

90Lm/W

Natural White:

3700-4500K

>70

AC100-277V

350mA

>0.98

<10%

CES-J100

84 pcs

9000

90Lm/W

>70

AC100-277V

350mA

>0.98

<10%

CES-J80

60pcs

7200

90Lm/W

Warm White:

2700-3500K

>70

AC100-277V

350mA

>0.98

<10%

CES-J40S

24pcs

3600

90Lm/W

>70

AC100-277V

350mA

>0.98

<10%

















Product image:










led canopy lights.jpg

.jpg











Certification:









6 .jpg







Application:







Widely used in gas station led canopy lighting , oil refinery industrial lighting , coal mine lighting and explosion proof flood lighting etc.
