Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: CESP
  • Model Number: CES-L120
  • Power Supply: AC
  • Application: Road/Street/garage/warehouse/factory
  • Lampshade Material: Tempered Glass
  • Lighting Bulbs & Tube: Bridgelux , Cree
  • Warranty:: 5 Years
  • Reflector:: Optional
  • Beam Angle:: 120°*120°
  • Light Source:: Bridgelux
  • CCT: Warm /Pure/Cold white
  • Driver:: Meanwell HLG
  • Material:: ADC12 Die Cast aluminums
  • Product size: 795x272x82.80 mm
  • Package size: 860x450x160 mm
  • G.N/N.W: 14.5kgs/13kgs

Packaging & Delivery

Packaging Details 1set/carton in formed foam and cartons
Delivery Time Sample needs 3-5 days after payment
Specification

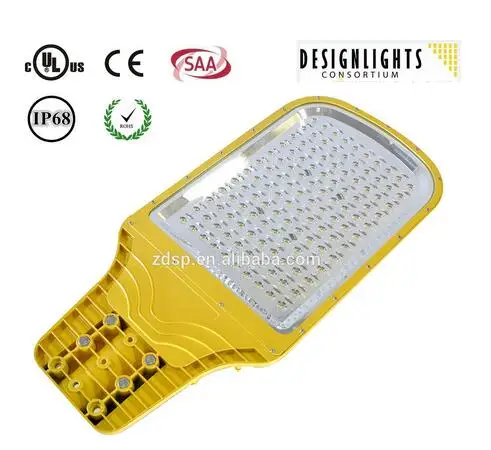

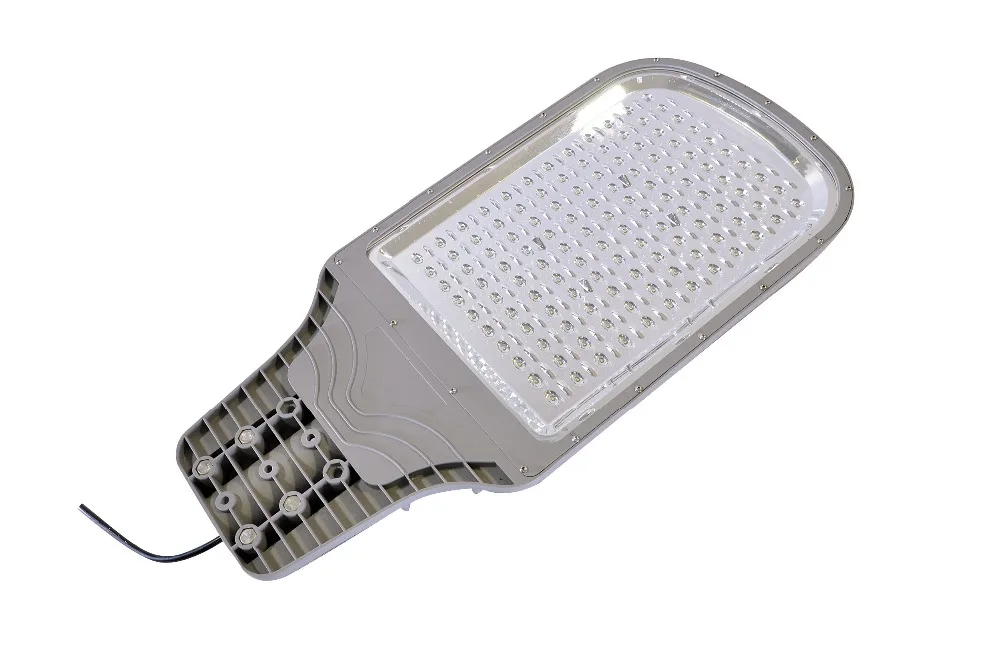

CE UL DLC 120W LED Road light street light IP68 rating 5 years warranty solar power lighting
Buy American Premium Quality at Medium Chinese Prices ! ! ! ! !
Product Specification
Item No:
CES-L120
Wattage :
120W
Material of Shell :
Die Cast Aluminum,Temper Glass,Anti-Dust,Water-proof,PCB Heat Index 2.0
Working Temperature :
-40℃ to 50℃ (Rated at T6 @ Max 25° C)
Product Size :
795*272*82.8 mm
Reflector :
Optional
Beam Angle :
120°x120°
IP Rating :
IP68
LED Specification
LED Brand :
120 pcs LM80 Certify 3535
Lumens :
12000
Lumens/W
100lm/W
CCT :
5700
Power Specification
Input Voltage :
AC100-240/277V
Power Factor :
98 %
THD :
<10%
Driver Brand :
HLG Meanwell driver with protective Aluminum Housing

Key features:
1) Die-cast aluminum by 1800 Tons of pressure to make the body strong enough.
2) Powder Coated (similar to vehicles coating) and holder are cover with a thin layer of Zink, color can be ---customizable.
3) IP 68, highest rating of protection.
4) Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.
5) 5 year warranty.
6) Best driver: Meanwell HLG driver.
7) With the fullest international certification,including UL844 Street lights North America for use in hazard area .

Photometric Design

Without Reflector :

The Beam Angle will be  140°*120°

With Reflector :

Beam Angle will be 120°*80°

COLOR Temperature : From Range 2500 K - 3000 K ( Warm White  )
                                                       3000 K - 4500 K ( Nature White )
                                               TO    4500 K - 7000 K (  Cool White   )
                                                                                All be at your Choice ! ! !

LED Solar 60W 90W 120W 150W Road Light Street lights High Power IP68 Street Lights
Package Information
 ITEM Models :
 Product Size ( mm )
  Packing Size ( mm )
        G.W. / N.W. (Kgs)
CES-L20, CES-L30,  CES-L40
     400*250*65mm
   470x310x200mm
      6.50kgs/5.50kgs
CES-L60, CES-L80,  CES-L100
   650*260*82.8mm
   710x360x200mm
      11.00kgs/10.00kgs
CES-L120, CES-L150, CES-L200
  795*272*82.80mm
   860x450x160mm
     14.50kgs/13.00kgs
Installation Process

CES-L Series:

1. Insert the lamp into pole.

2. Position the lamp direction and fixed screw into lock position.

3. Fixed screw into lock position,The torque of applied to the screw/bolt is 1.08 kg.m

4. Place the lamp cord into the pole; connect the wire to local power supply (AC100-277V).
Cases & Installation
Certification

Europe Market   :  ATEX ,  CE  ,  ROHS

North Amercan Market :  UL844, C/UL1598, DLC, LM79, LM80, Energy Star
Australia  Market  :  SAA , C-tick

China Market : CCC , CQC , CNEX         Japan  Market  :  PSE

Global  Market :  IECEX

Company Information

Advanced Technology & High Peformance Equipments

COMPANY INTRO :

                Shenzhen Cesp Co., Ltd (formally ChinaEnergy South Power Equipment (Shenzhen) Co., Ltd), is a national high-techenterprise. With registered capital of 50 Million RMB, and subsidiary company in Dongguan, Shenzhen CESP Equipment (Dongguan) Co., Ltd, China's largest production base for Explosion Proof Lighting Fixtures, with 4 specialized production lines and aging facility for the Explosion Proof LightingFixtures and more than 20,000 square meters of modern manufacturing facility, 200production workers and a series of Specialize Equipment, including Injection Molding,Cast Aluminum facility, Intelligent Vacuum Detection Facility for Waterproofing test, Photometric Tester for IES, Hi-Temperature Simulated Facility, Salt Spray Corrosion Facility Vibration Testing Facility, Lightning Protection Testing Equipment, Dust-proof & Oil-proof Testing Equipment, as well as other Advanced Detection Equipment.

             Shenzhen Cesp Co., Ltd had passed the ISO9001Quality System Certification and ISO14001 Environment System Certification. ShenzhenCesp Co., Ltd is also one of China's National High tech Enterprises, with Chinese Explosion-Proof Certification; CNEX, European Explosion-Proof Certification;ATEX and CE, ROHS certification. North American HazLoc Certification (UL844,Class 1 Div 2), UL, CUL, DLC, ETL, CETL, LM80, LM79 certification. Australia SAA, C-Tick Certification AND International IECEX Certification.


Service CESP Provides :

1) Before and after sales in time service 7/24.
2) Professional Lighting solution suggestions, dialux/oyxtech simulation available.
3) Payment terms: Paypal, TT, LC, DP etc.
4) Shipment terms: FOB, CIF, CFR
5) Short Lead time: 5-7 working days for sample order and orders less than 100units.
6) NO MOQ required, sample testing welcome.

Contact

For any Inquires , Please Contact :

Kyle Lee

Mobile / Whatsapp : +86 18820900812 (24/7 Available)
Wechat : Kyleled
QQ : 2306549542
