CESP lm80 test report led street light solar street light ip68 ul dlc saa

FOB Reference Price:Get Latest Price
  • >=1 Pieces
    US $95.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
CESP
Model Number:
CESP-L Series
Power Supply:
Solar
Application:
Highway
Lampshade Material:
Toughened Glass
Lighting Bulbs & Tube:
Energy Saving
Light Source:
LED street light
IP Rating:
IP68
Warranty:
5 years
Working Temperature:
-40 °~ 50°
Input Voltage(V):
AC100-277V
LED Chip:
Bridgelux Chip/Cree
Color Temperature(CCT):
Cool White
Driver:
Meanwell HLG
Lamp Body Material:
Die Cast Aluminum
Total Power(W:
40W~200W
Supply Ability
Supply Ability:
1000 Yard/Yards per Quarter
Packaging & Delivery
Packaging Details
in foam and cartons
suitable for international shipping
Port
Shenzhen
Lead Time :
Shipped in 7 days after payment

 CESP lm80 test report led street light solar street light  ip68 ul dlc saa

Specifications

CE & Rosh led for street light
1. patented constant current power drive
2. 50,000-100,000 hours,20,000 hours luminious maintainance over 97%
3. unique waterproof structure
4. super heat dissipation

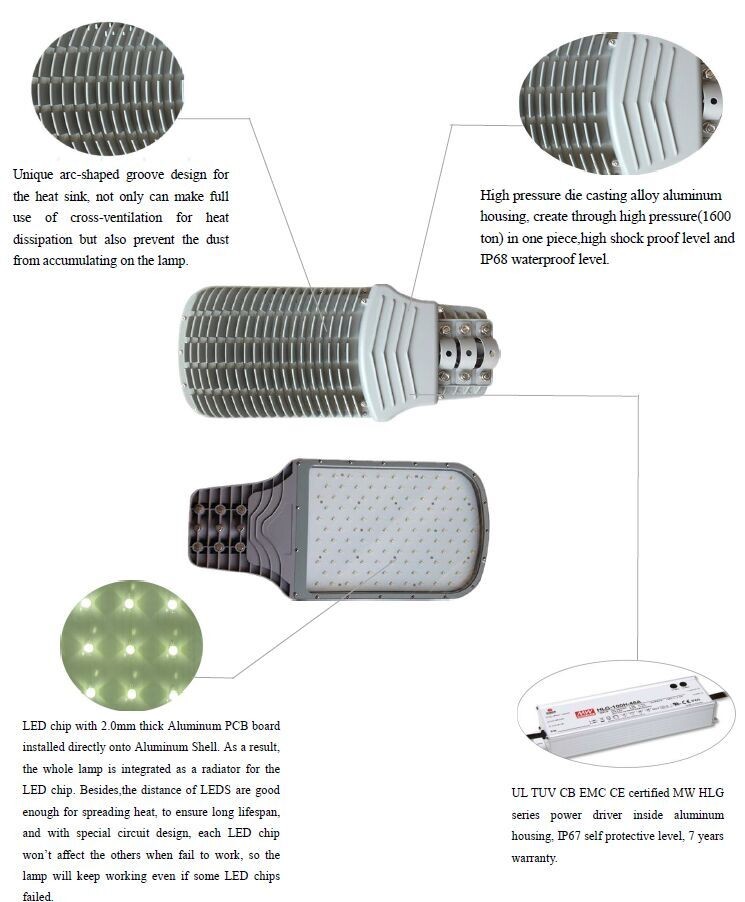

FEATURES:

1.High Efficacy low decay SMD LED chip,up to 150lm/w@350ma, rated life span 100,000 hrs.

2.High heat transmitting die cast housing with ADC12 aluminum, patented design, IP68 protection grade.

3.Shock and vibration resistant tempered glass, super clear 95% light transmitting rate.

4.Anti-glares scientific optical reflector design, making the light more even, comfortable for eyes and efficient light distribution on the ground.

5.MEANWELL HLG series driver, the best of MEANWELL outdoor LED driver.

6.Surface treatment-Powder coating with Epoxy Polyester, salt resistant and chemical resistant, patented arc shape heat sink design, to prevent the dust from accumulating on the surface.

7.2.0mm thick aluminum PCB with heat index 2.5, excellent heat transmitting performance, keep LED chips working under normal temperature.

8. EMC test standard, Total harmonic distortion(THD)<10%, minimize the impact towards electric system.



Certification: UL, CUL, DLC, PSE, SAA C-TICK, CQC, CE, ROHS, IP68

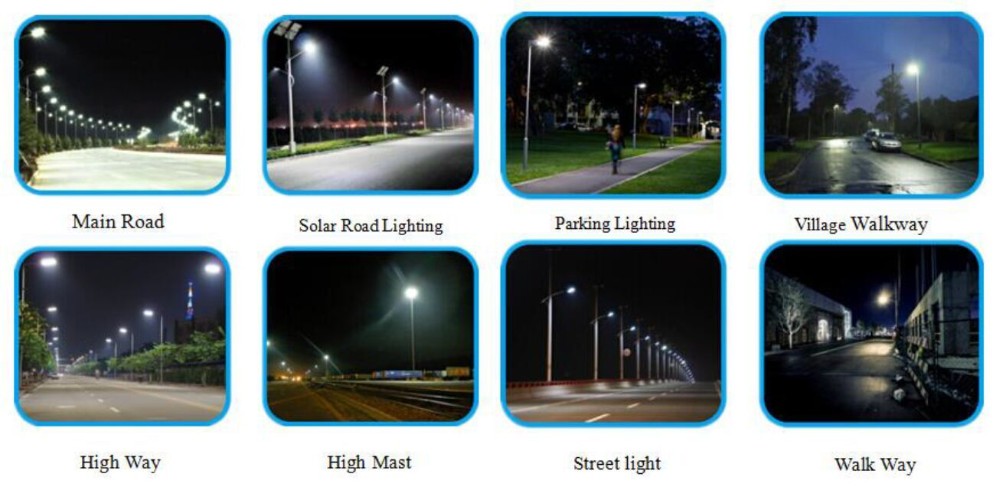

APPLICATIONS:

1. Suitable for main road, high way, walkway, park lighting etc.

2. Can work with solar system.

DETAIL:



Item No

Product Specification





            Certificates

Rated Power

Size(mm)

With reflector(RF) or not

Beam

IP

Angle

Rating

CES-L200

185W

795*372*82.8mm

NO

140°x80°

IP68

CE/ROHS/UL/CUL/DLC/SAA/CT-TICK/PSE

CES-L150

150W

Optional

140°x80°
120°x80°(RF)

IP68

CE/ROHS/UL/CUL/SAA/CT-TICK/PSE

CES-L120

120W

Optional

140°x80°
120°x80°(RF)

IP68

CE/ROHS/UL/CUL/SAA/CT-TICK/PSE

CES-L100

100W

680*260*82.8mm

NO

140°x80°

IP68

CE/ROHS/UL/CUL/SAA/CT-TICK/PSE

CES-L80

80W

Optional

140°x80°
120°x80°(RF)

IP68

CE/ROHS/UL/CUL/DLC/SAA/CT-TICK/PSE

CES-L60

60W

Optional

140°x80°
120°x80°(RF)

IP68

CE/ROHS/UL/CUL/SAA/CT-TICK/PSE

CES-L40

40W

400*250*65

mm

Optional

140°x80°
120°x80°(RF)

IP68

CE/ROHS/UL/CUL/DLC/SAA/CT-TICK/PSE

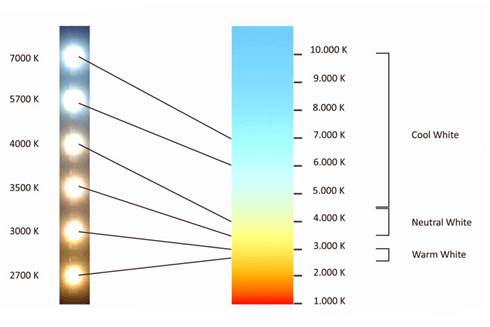

COLOR TEMPERATURE









LED Specification

Driver  Specification




Item No.

Led

Nominal Lumens

Lumen

CCT

CRI

Input V

Input Current

PF

THD

Type



Qty.

Lm rW



CES-L200

144 pcs

16550

90Lm W

Cool White:5700-6500K

>70

AC100-277V

350mA

>0.98

<10%

HLG MEANWELL driver with IP68 protective Aluminum Housing



CES-L150

120 pcs

13500

90Lm/W

>70

AC100-277V

350mA

>0.98

<10%



CES-L120

120 pcs

10800

90Lm/W

Natural White:3700-4500K

>70

AC100-277V

350mA

>0.98

<10%



CES-L100

60 pcs

9000

90Lm/W

>70

AC100-277V

350mA

>0.98

<10%



CES-L80

60pcs

7200

90Lm/W

Warm White:2700-3500K

>70

AC100-277V

350mA

>0.98

<10%



CES-L60

60pcs

5400

90Lm/W

>70

AC100-277V

350mA

>0.98

<10%



CES-L40

36pcs

3600

90Lm/W

>70

AC100-277V

350mA

>0.98

<10%

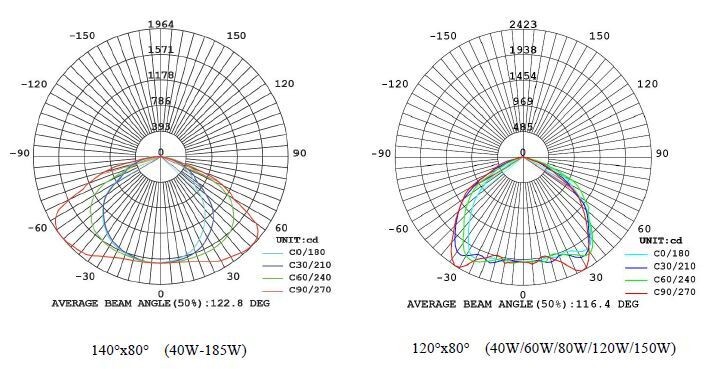

PHOTOMETRIC CURVE

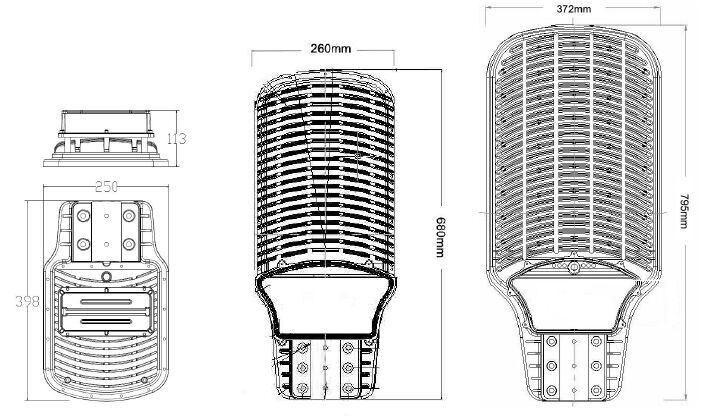

DIMMENSION

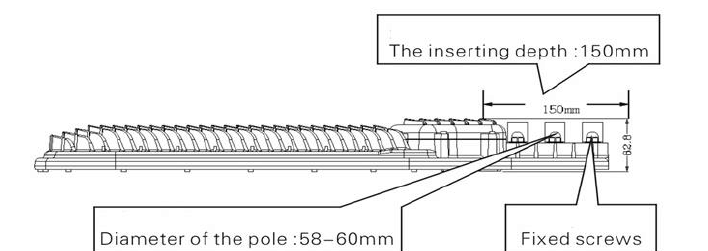

INSTALLATION



A. The cantilever length is usually not more than a quarter of the mounting height , and the elevation should not exceed 15 °

B. Installation Steps:

  Place the lamp cord into the pole

  Insert the lamp into the pole

Adjust the lamp direction and fix screw into lock position

  Fix the screw into lock position,the torque applied to the screw is 1.08 kg.m

 The size of cavity inserted into the junction box should not be more than  80mm*40mm*40mm

  Seal the gap between the power driver lid and the plate tightly with silicone glue.
