ATEX UL844 CUL DLC led anti-explosive lighting gas station canopy light

FOB Reference Price:Get Latest Price
US $50-330 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
CESP
Model Number:
CES-J
certifications:
CE ROHS CUL UL DLC CNEX ATEX SAA
led:
USA Bridgelux/cree/Genesis
water proof:
ip68
Material:
Die cast aluminum alloy
Power driver:
Meanwell HLG driver ( The best)
Efficacy:
90-100lm/w
Application:
explosion proof led light
Type:
explosion proof led gas station canopy light
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
ATEX UL844 CUL DLC 120W explosion proof led gas station canopy light
1set/carton
in foam and cartons, standard carton
outside carton size: 460x460x240mm
G.W.: 12.5kgs
N.W.:11.5kgs
Port
Shenzhen
Lead Time :
7



Product Description

ATEX UL844 CUL DLC led anti-explosive lighting gas station canopy light



5.26





 Key features;



-Die-cast aluminum by 1800 Ton of pressure to make the body strong enough.

-Powder Coated (similar to vehicles coating) and holder are cover with a thin layer of Zink, color can be ---customizable.

-IP 68, highest rating of protection.

-Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.

-5 year warranty.

-Best driver: Meanwell HLG driver.



Main Technology

LED Chips:

BridgeLux LED chips packaged professionally ensure the light source kept in optimum performance; mirror surface processed technology collect and reflect the invalid light into efficiency; use of lens controls the horizontal and vertical beam angle actively.

Power Supply:

To use world’s leading brand MeanWell power supply ensure the fixture works in stableness with better performance and enjoy its long life; power supply is CE RoHS TUV CB certificated.

Housing

 High pressure intergrated die cast aluminum, perfect protection
 1suction cup seal







Specification:





Item No

Product Specification

Certificate for

Europe

Certificate for

US&Canada

Rated Power

Size(mm)

With reflector(RF) or not

Beam

IP

Angle

Rating

CES-J200

185W

400*400*185mm

NO

120°x120°

IP68

CE/ROHS

UL/CUL/DLC

CES-J150

150W

400*400*185mm

NO

120°x120°

IP68

CE/ROHS

UL/CUL

CES-J120

120W

400*400*185mm

Optional

60°x30°(RF)
/120°x120°

IP68

ATEX/CE/ROHS

UL/CUL

CES-J100

100

300*300*175mm

NO

120°x120°

IP68

ATEX/CE/ROHS

UL/CUL/DLC

CES-J80

80W

300*300*175mm

Optional

60°x30°(RF)
/120°x120°

IP68

ATEX/CE/ROHS

UL/CUL

CES-J40S

40W

200*200*270mm

Optional

60°x30°(RF)
/120°x120°

IP68

ATEX/CE/ROHS

UL/CUL/DLC







LED Specification

Driver  Specification

Item No.

LED QTY

Lumens

Lumen

CCT

CRI

Input V

Input

Current

PF

THD

Type

Lm/W

CES-J200

156 pcs

16550

90Lm/W

Cool White:

5700-6500K

>70

AC100-277V

350mA

>0.98

<10%

HLG MEANWELL driver

with IP68 protective

Aluminum Housing

CES-J150

144 pcs

13500

90Lm/W

>70

AC100-277V

350mA

>0.98

<10%

CES-J120

96 pcs

10800

90Lm/W

Natural White:

3700-4500K

>70

AC100-277V

350mA

>0.98

<10%

CES-J100

84 pcs

9000

90Lm/W

>70

AC100-277V

350mA

>0.98

<10%

CES-J80

60pcs

7200

90Lm/W

Warm White:

2700-3500K

>70

AC100-277V

350mA

>0.98

<10%

CES-J40S

24pcs

3600

90Lm/W

>70

AC100-277V

350mA

>0.98

<10%

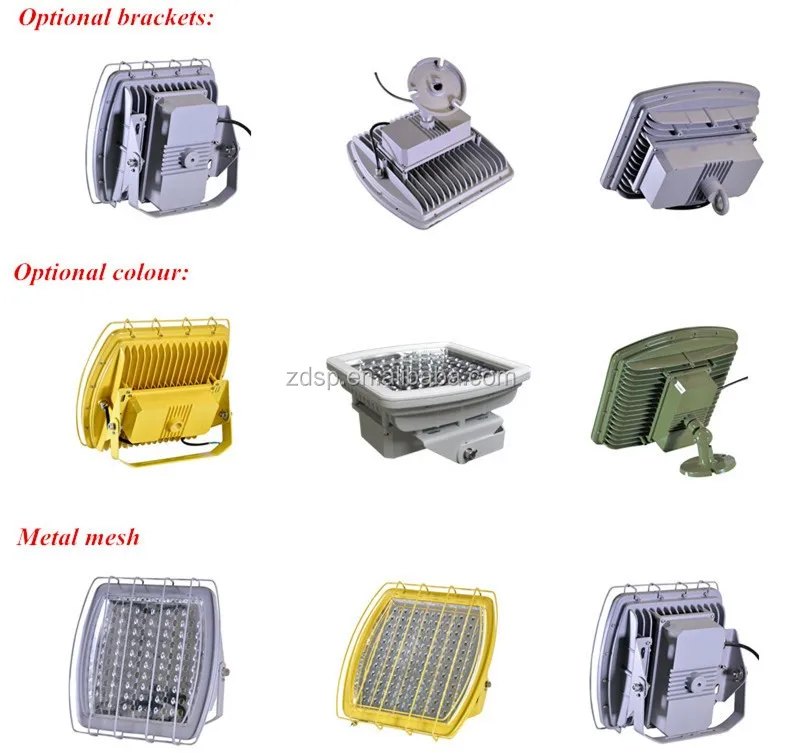

Product image:

1

HTB1MQX8JXXXXXaEXVXXq6xXFXXXfQQ20170503175932

factory







Certification:



UL HAZLOC7UL HAZLOC2







Project show:



Widely used in gas station canopy lighting , oil refinery industrial lighting , coal mine lighting and explosion proof flood lighting etc.

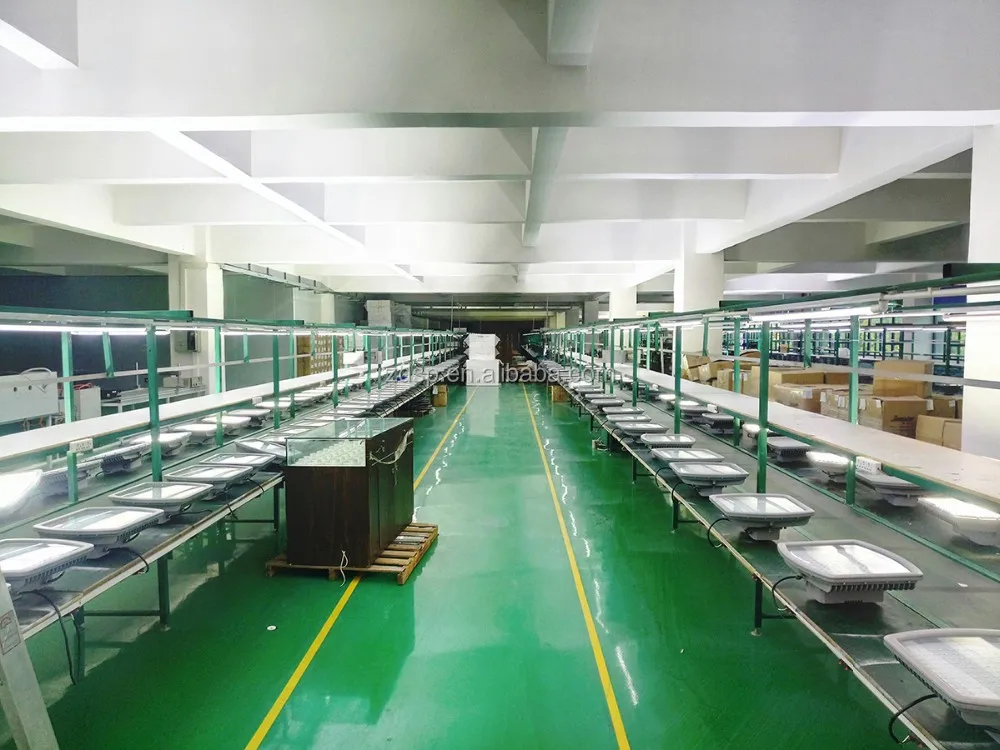

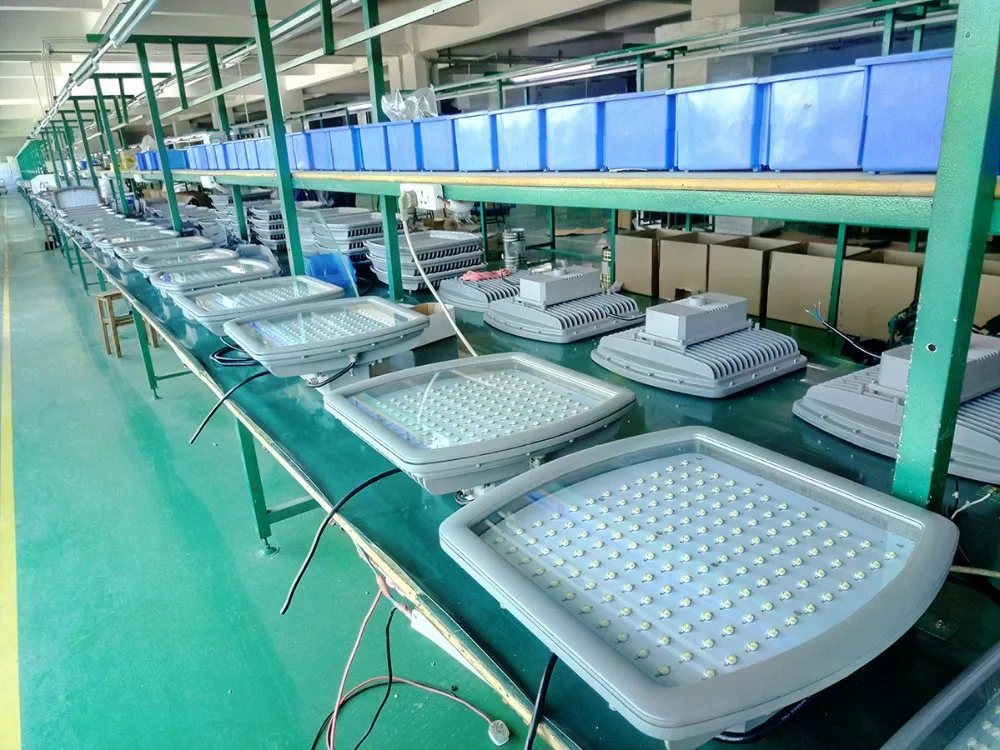

Factory show:

2017-01 (5)-12017-01 (13)-12017-01 (10)-1

HTB1oPz7LXXXXXXTXFXXq6xXFXXXEHTB194T9KVXXXXb7XVXXq6xXFXXXE
