CESP China first UL844 C1 D2 Led street light around gas station lighting

FOB Reference Price:Get Latest Price
US $100-400 / Pieces | 1 Piece/Pieces depend (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Street Lights
LED Light Source:
USA Bridgelux ,USA Cree
Input Voltage(V):
100-277V
Lamp Power(W):
80
Lamp Luminous Flux(lm):
8000
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra>):
70
Color Temperature(CCT):
Warm White ,Cool White
Working Temperature(℃):
-40 - 50
Working Lifetime(Hour):
100000
Lamp Body Material:
Aluminum Alloy, ADC12 die cast aluminum alloy
IP Rating:
IP67
Certification:
CCC, CE, EMC, FCC, LVD, PSE, RoHS, SAA, UL
Warranty(Year):
5
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
CESP
Model Number:
CES-L40,CES-L60,CES-L80,CES-L90,CES-L100,CES-L120,CES-L150...
Led Driver:
Taiwan Meanwell HLG driver
Protection Level:
IP68, Precede IP65
Lampshade Material:
Toughened Glass
Body color:
Gray/Yellow/White/Green
Application:
Highway
Reflector:
optional
OEM:
Available
SupplyAbility
SupplyAbility:
100000 Piece/Pieces per Month Led street light
Packaging & Delivery
Packaging Details
one in a carton, filled in foam;
Port
shenzhen
Lead Time :
Shipped in 5 days after payment

CESP China first UL844 C1 D2 Led street light around gas station lighting



Product Description



Strenth:



- Protecting Grade: The highest IP68

- CE, RoHS, UL, cUL  passed
- 5 years warranty led chip



Introduction:



1, Unique integrate Die-Cast Aluminum with self- clean feature, enable efficient heat transmit function, effectively increase the life- span of light fixture.

2, Unique Integrated Light distribution system, enable maximization of Light output.

3, With world class quality LED chip and electronic component, enabling reliable quality.

4, High energy saving, energy saving result immediately.





Key Feature:





1.High Efficacy low decay SMD LED chip,up to 150lm/w @350ma, rated life span 100,000 hrs.

2.High heat transmitting die cast housing with ADC12 aluminum, patented design, IP68 protection grade

3.Shock and vibration resistant tempered glass, super clear 95% light transmitting rate

4.Anti-glare.Scientific optical reflector design, making the light more focus, even, comfortable for eyes

5.MEANWELL  HLG series driver, the highest lever of MEANWELL driver

6.Surface treatment-Powder coating with Epoxy Polyester, salt resistant and chemical resistant, patented arc shape heat sink design, to prevent the dust from accumulating on the surface

7.2.0mm thick aluminum PCB with heat index 2.5, keep LED working under normal temperature

8. EMC test standard, Total harmonic distortion(THD)<10%, minimize the impact towards electric system



Certification: UL, CUL, DLC, PSE, SAA&C-TICK, CQC, CE, ROHS, IP68

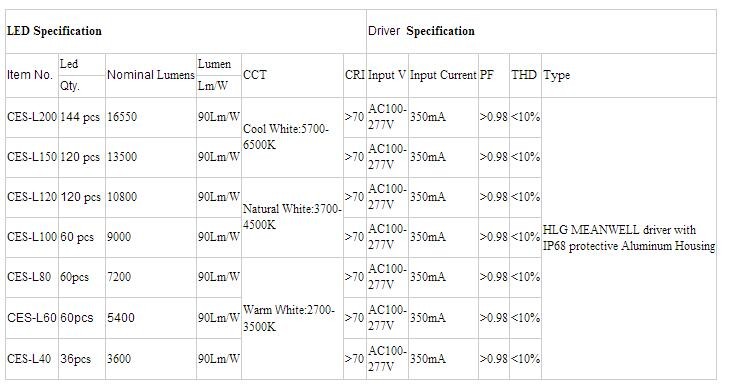

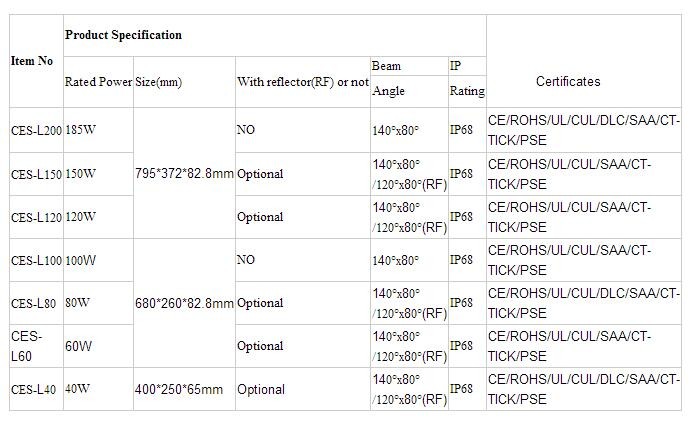

Specifications:

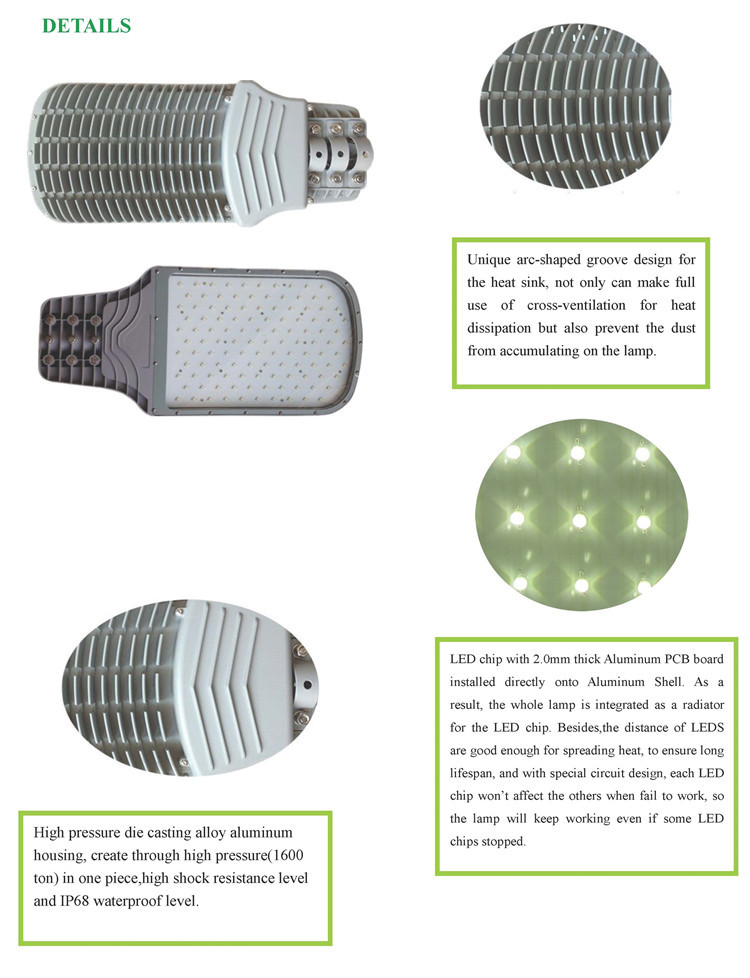

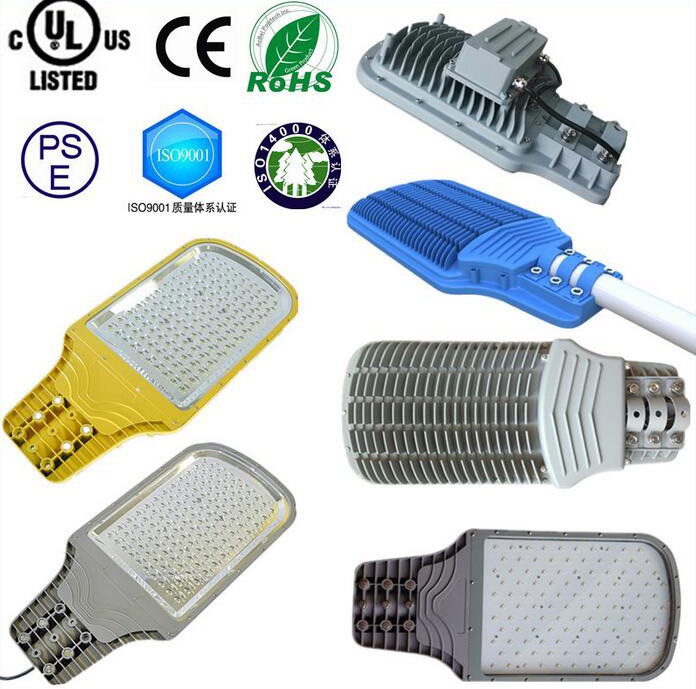

Product image:

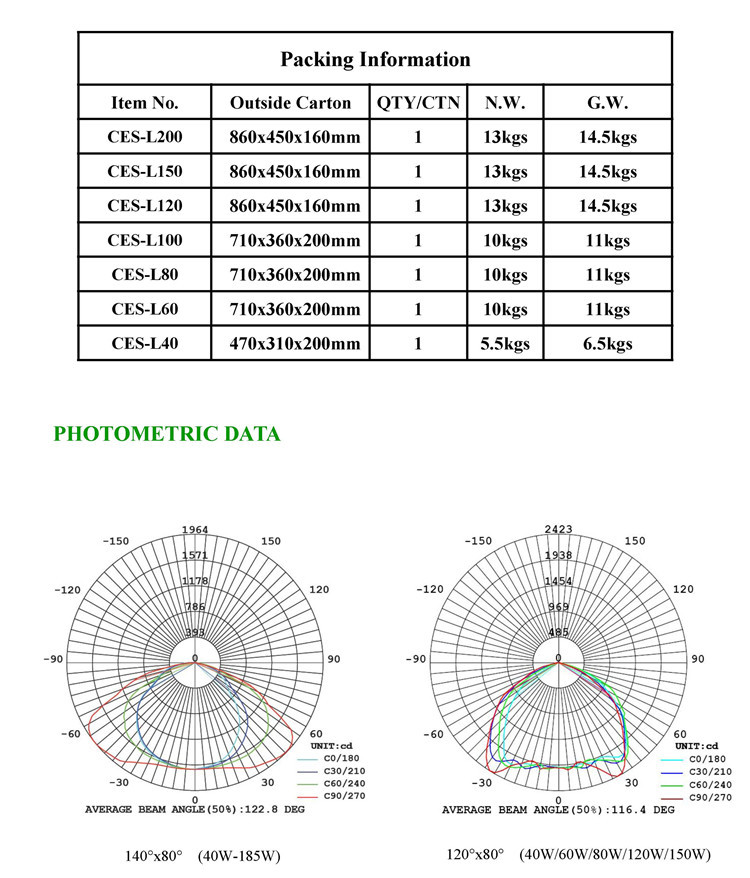

Packing:

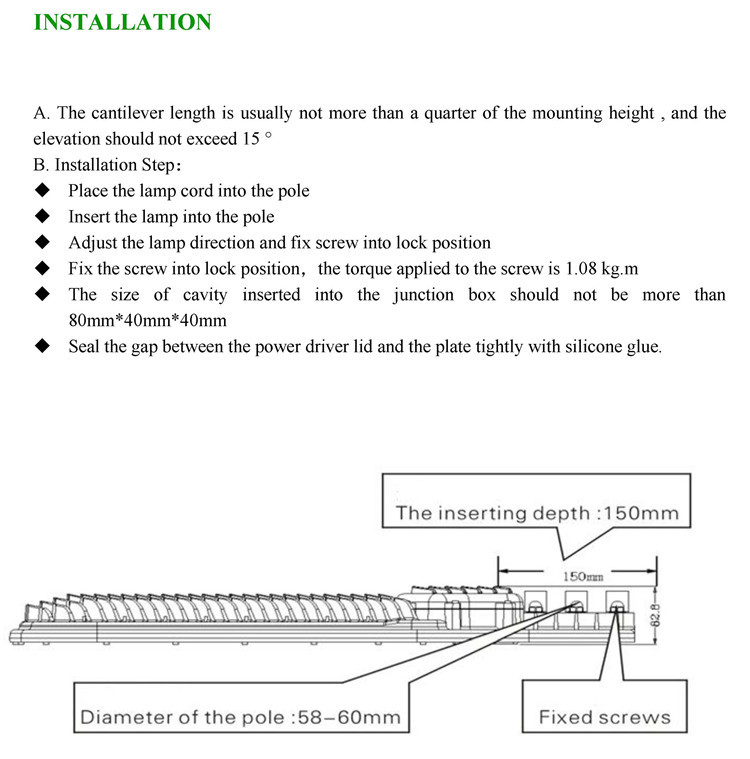

Installation:













Certification:







Company Information

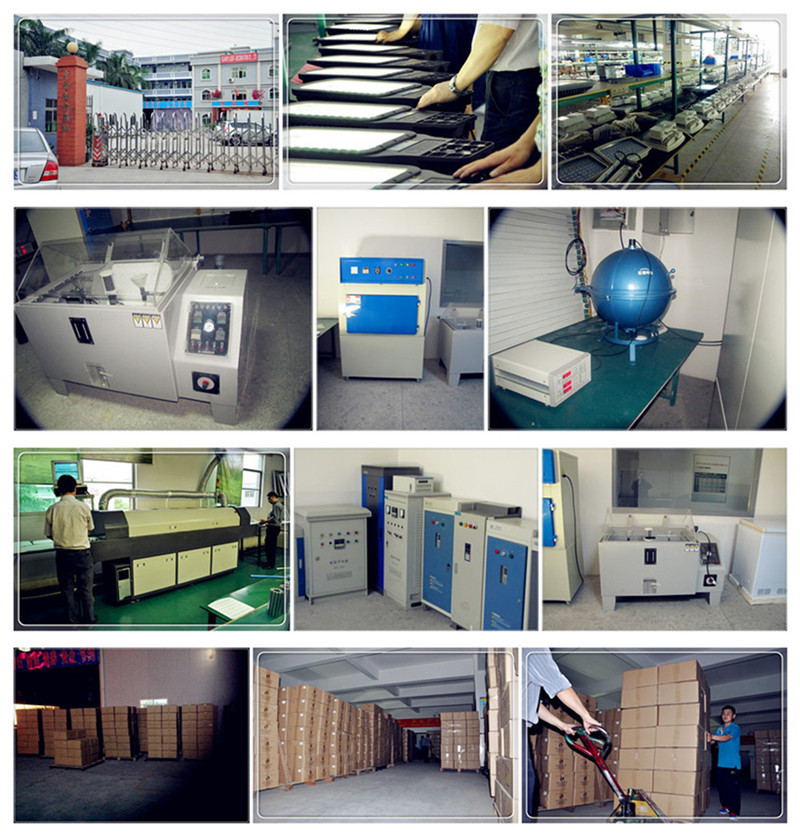

Factory show:
