UL DLC ATEX 100w led explosion-proof high bay lighting with 5 years warranty

FOB Reference Price:Get Latest Price
US $50-330 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Explosion-proof Lights
LED Light Source:
Bridgelux/Cree/Genesis
Input Voltage(V):
100-277
Lamp Power(W):
100
Lamp Luminous Flux(lm):
9000
Lamp Luminous Efficiency(lm/w):
90
CRI (Ra>):
70
Color Temperature(CCT):
Cool White
Working Temperature(℃):
-40 - 50
Working Lifetime(Hour):
100000
IP Rating:
IP68
Certification:
C-tick, CCC, CE, CQC, EMC, FCC, LVD, PSE, RoHS, SAA, UL
Emitting Color:
White
Base Type:
FESTOON
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
CESP
Model Number:
CES-J
certifications:
CE ROHS CUL UL DLC CNEX ATEX SAA
water proof:
ip68
Material:
Die cast aluminum alloy
Power driver:
Meanwell HLG driver ( The best)
Efficacy:
90-100lm/w
Application:
hazardous area lighting
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1set/carton
in foam and cartons, standard carton
outside carton size: 460x460x240mm
G.W.: 12.5kgs
N.W.:11.5kgs
Port
Shenzhen
Lead Time :
7 days



Product Description

IP68 UL DLC ATEX 100w led explosion-proof high bay lighting with 5 years warranty







Why CESP?





1. For hazardous area lighting products, it is fairly important to choose specialized manufacturer because the security for hazardous area lighting is essential.



2. CESP is a specilized LED EXPLOSION PROOF LIGHT manufacturer since the establishement in 2007,  with CE/ROHS/UL/CUL/DLC/SAA/PSE certification, and most important, ATEX and CNEX explosion proof certification.



3. Besides, we'll soon get the UL844(class 1 division 2) explosion proof certification, which means we'll be the only manufacturer who owns these qualifications at the same time.



4. By now we have a whole series led EXPLOSION PROOF LIGHTS (CES-J), including 20W-185W wide power range and various installation brackets, and also customizable product color. can satisfy most of the hazardous area lighting applications.









 Key features;



-Die-cast aluminum by 1800 Ton of pressure to make the body strong enough.

-Powder Coated (similar to vehicles coating) and holder are cover with a thin layer of Zink, color can be ---customizable.

-IP 68, highest rating of protection.

-Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.

-5 year warranty.

-Best driver: Meanwell HLG driver.



Main Technology

LED Chips:

BridgeLux LED chips packaged professionally ensure the light source kept in optimum performance; mirror surface processed technology collect and reflect the invalid light into efficiency; use of lens controls the horizontal and vertical beam angle actively.

Power Supply:

To use world’s leading brand MeanWell power supply ensure the fixture works in stableness with better performance and enjoy its long life; power supply is CE RoHS TUV CB certificated.

Housing

 High pressure intergrated die cast aluminum, perfect protection
 1suction cup seal







Specification:











Item No

Product Specification

Certificate for

Europe

Certificate for

US&Canada

Rated Power

Size(mm)

With reflector(RF) or not

Beam

IP

Angle

Rating

CES-J200

185W

400*400*185mm

NO

120°x120°

IP68

CE/ROHS

UL/CUL/DLC

CES-J150

150W

400*400*185mm

NO

120°x120°

IP68

CE/ROHS

UL/CUL

CES-J120

120W

400*400*185mm

Optional

60°x30°(RF)
/120°x120°

IP68

ATEX/CE/ROHS

UL/CUL

CES-J100

100

300*300*175mm

NO

120°x120°

IP68

ATEX/CE/ROHS

UL/CUL/DLC

CES-J80

80W

300*300*175mm

Optional

60°x30°(RF)
/120°x120°

IP68

ATEX/CE/ROHS

UL/CUL

CES-J40S

40W

200*200*270mm

Optional

60°x30°(RF)
/120°x120°

IP68

ATEX/CE/ROHS

UL/CUL/DLC







LED Specification

Driver  Specification

Item No.

LED QTY

Lumens

Lumen

CCT

CRI

Input V

Input

Current

PF

THD

Type

Lm/W

CES-J200

156 pcs

16550

90Lm/W

Cool White:

5700-6500K

>70

AC100-277V

350mA

>0.98

<10%

HLG MEANWELL driver

with IP68 protective

Aluminum Housing

CES-J150

144 pcs

13500

90Lm/W

>70

AC100-277V

350mA

>0.98

<10%

CES-J120

96 pcs

10800

90Lm/W

Natural White:

3700-4500K

>70

AC100-277V

350mA

>0.98

<10%

CES-J100

84 pcs

9000

90Lm/W

>70

AC100-277V

350mA

>0.98

<10%

CES-J80

60pcs

7200

90Lm/W

Warm White:

2700-3500K

>70

AC100-277V

350mA

>0.98

<10%

CES-J40S

24pcs

3600

90Lm/W

>70

AC100-277V

350mA

>0.98

<10%

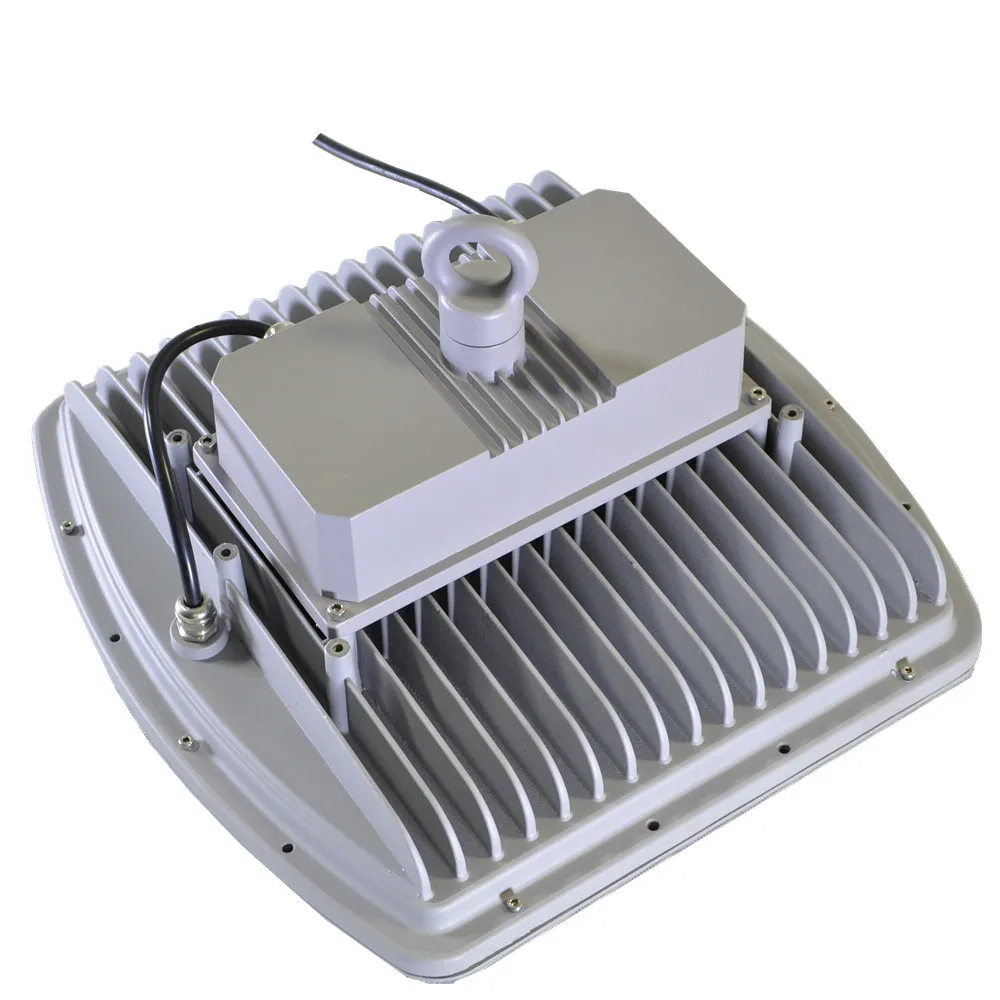

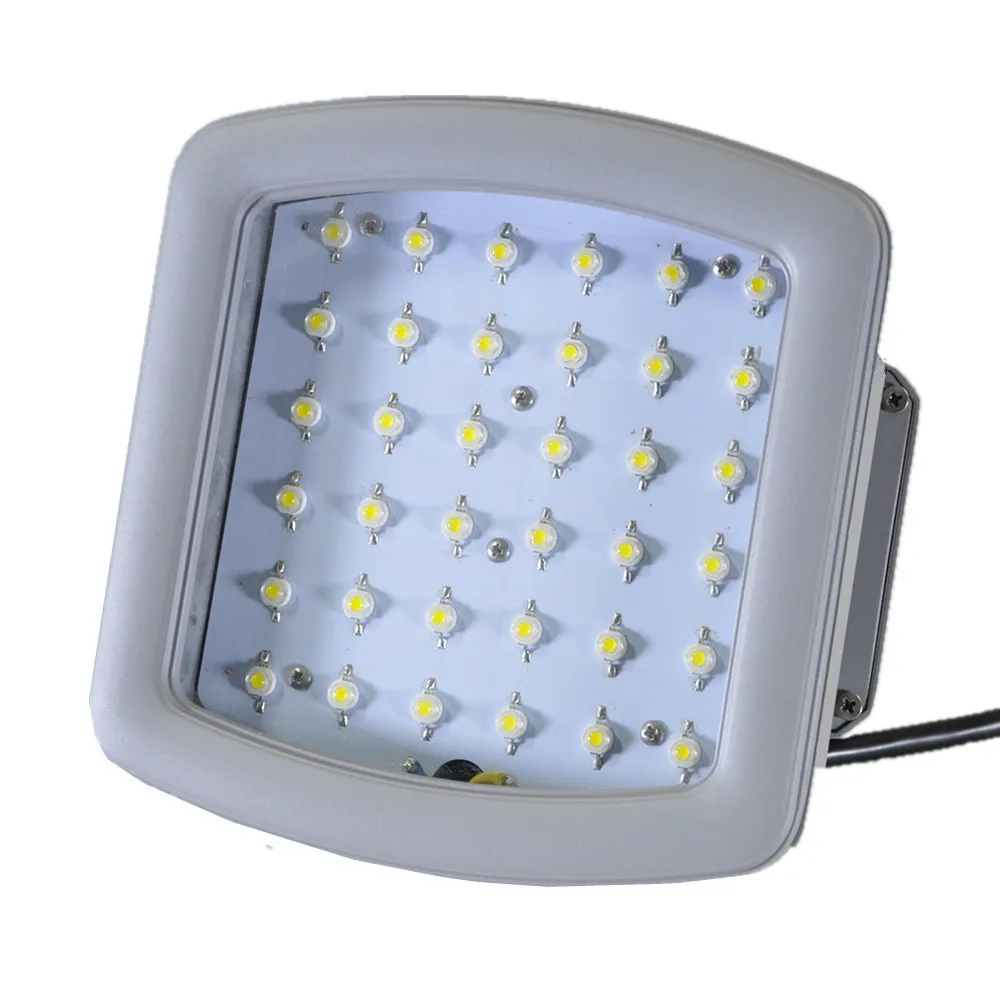

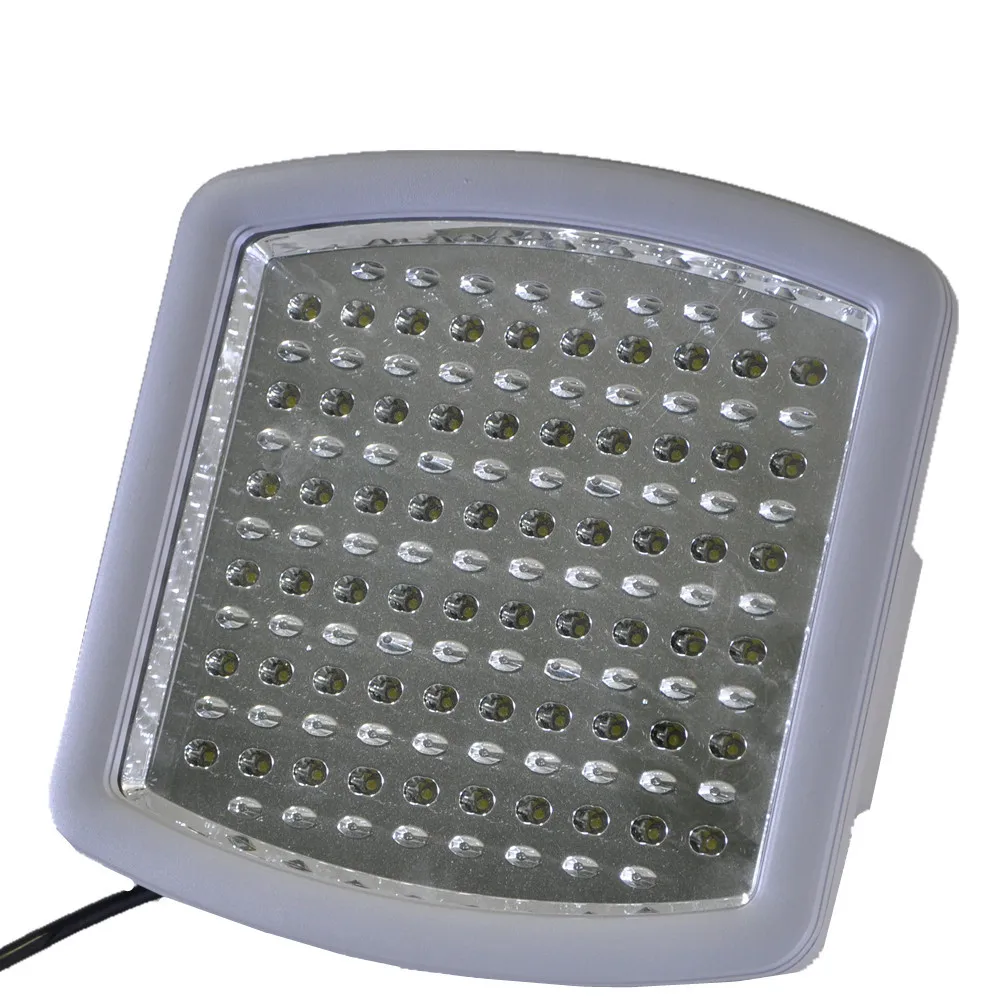

Product image:














additional service



.jpg











Certification:









6 .jpg







Application:







Widely used in gas station canopy lighting , oil refinery industrial lighting , coal mine lighting and explosion proof flood lighting etc.
