IP68 UL ATEX 70w led explosion-proof high bay lighting
Why CESP?
1. For hazardous area lighting products, it is fairly important to choose specialized manufacturer because the security for hazardous area lighting is essential.
2. CESP is a specilized LED EXPLOSION PROOF LIGHT manufacturer since the establishement in 2007, with CE/ROHS/UL/CUL/DLC/SAA/PSE certification, and most important, ATEX and CNEX explosion proof certification.
3. Besides, we'll soon get the UL844(class 1 division 2) explosion proof certification, which means we'll be the only manufacturer who owns these qualifications at the same time.
4. By now we have a whole series led EXPLOSION PROOF LIGHTS (CES-J), including 20W-185W wide power range and various installation brackets, and also customizable product color. can satisfy most of the hazardous area lighting applications.
Key features;
-Die-cast aluminum by 1800 Ton of pressure to make the body strong enough.
-Powder Coated (similar to vehicles coating) and holder are cover with a thin layer of Zink, color can be ---customizable.
-IP 68, highest rating of protection.

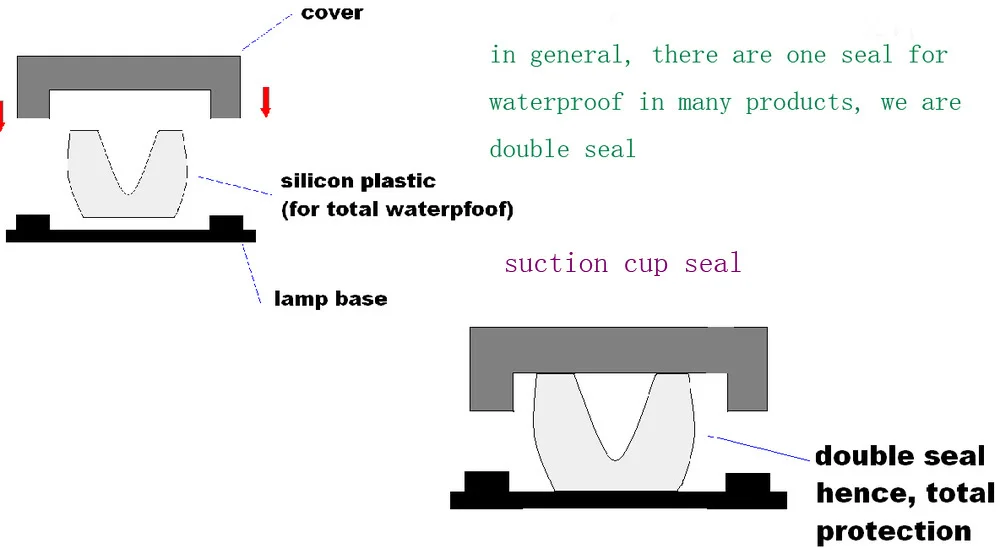

-Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.
-5 year warranty.
-Best driver: Meanwell HLG driver.
Main Technology | |
LED Chips: | BridgeLux LED chips packaged professionally ensure the light source kept in optimum performance; mirror surface processed technology collect and reflect the invalid light into efficiency; use of lens controls the horizontal and vertical beam angle actively. |
Power Supply: | To use world’s leading brand MeanWell power supply ensure the fixture works in stableness with better performance and enjoy its long life; power supply is CE RoHS TUV CB certificated. |
Housing | High pressure intergrated die cast aluminum, perfect protection |
Specification:
Item No | Product Specification | Certificate for Europe | Certificate for US&Canada | ||||
Rated Power | Size(mm) | With reflector(RF) or not | Beam | IP | |||
Angle | Rating | ||||||
CES-J200 | 185W | 400*400*185mm | NO | 120°x120° | IP68 | CE/ROHS | UL/CUL/DLC |
CES-J150 | 150W | 400*400*185mm | NO | 120°x120° | IP68 | CE/ROHS | UL/CUL |
CES-J120 | 120W | 400*400*185mm | Optional | 60°x30°(RF) | IP68 | ATEX/CE/ROHS | UL/CUL |
CES-J100 | 100 | 300*300*175mm | NO | 120°x120° | IP68 | ATEX/CE/ROHS | UL/CUL/DLC |
CES-J80 | 80W | 300*300*175mm | Optional | 60°x30°(RF) | IP68 | ATEX/CE/ROHS | UL/CUL |
CES-J40S | 40W | 200*200*270mm | Optional | 60°x30°(RF) | IP68 | ATEX/CE/ROHS | UL/CUL/DLC |
LED Specification | Driver Specification | |||||||||
Item No. | LED QTY | Lumens | Lumen | CCT | CRI | Input V | Input Current | PF | THD | Type |
Lm/W | ||||||||||
CES-J200 | 156 pcs | 16550 | 90Lm/W | Cool White: 5700-6500K | >70 | AC100-277V | 350mA | >0.98 | <10% | HLG MEANWELL driver with IP68 protective Aluminum Housing |
CES-J150 | 144 pcs | 13500 | 90Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||
CES-J120 | 96 pcs | 10800 | 90Lm/W | Natural White: 3700-4500K | >70 | AC100-277V | 350mA | >0.98 | <10% | |
CES-J100 | 84 pcs | 9000 | 90Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||
CES-J80 | 60pcs | 7200 | 90Lm/W | Warm White: 2700-3500K | >70 | AC100-277V | 350mA | >0.98 | <10% | |
CES-J40S | 24pcs | 3600 | 90Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||
Product image:
Certification:
Application:

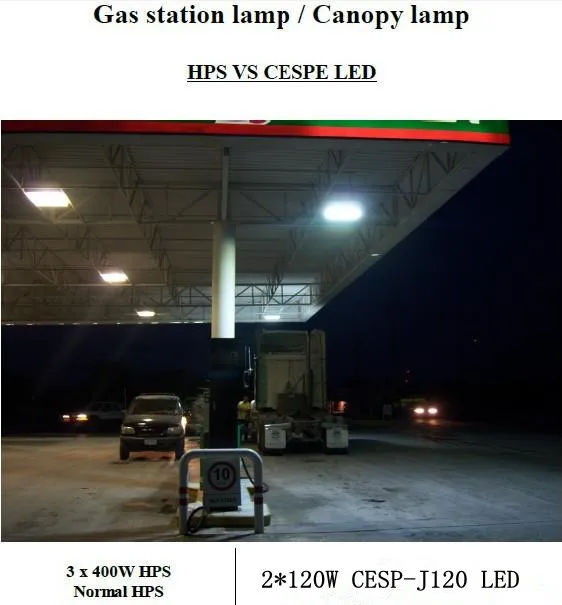

Widely used in gas station canopy lighting , oil refinery industrial lighting , coal mine lighting and explosion proof flood lighting etc.
Factory show:
