40w 80w 100w/150w/180w/200w led street light UL ETL /led road lamp/waterproof street light by Shenzhen led factory
- Emitting Color:
- Cold White
- Lamp Power(W):
- 100
- Model Number:
- CES-L
- Light Source:
-
LED
- Item Type:
-
Street Lights
- Input Voltage(V):
-
100-277V
- Lamp Luminous Flux(lm):
-
10,000
- CRI (Ra>):
-
70
- Working Temperature(℃):
-
-40 - 50
- Working Lifetime(Hour):
-
470000
- IP Rating:
-
IP68

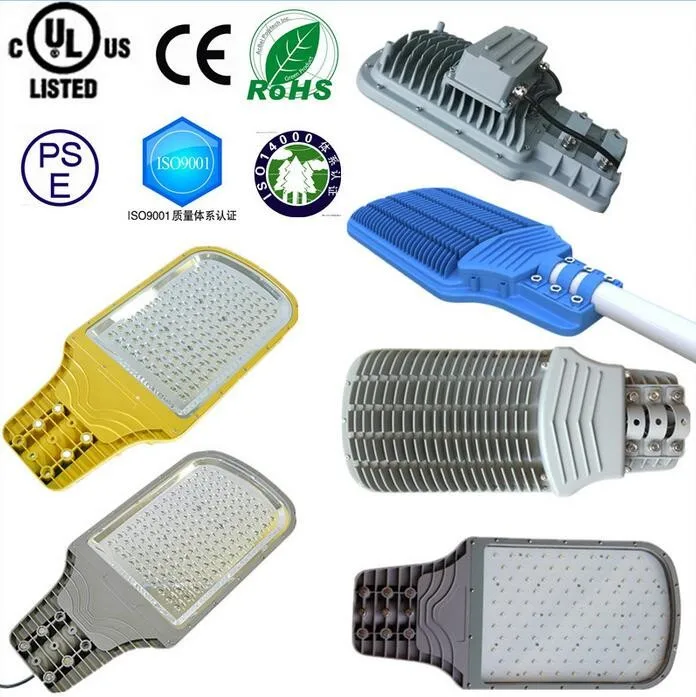

- Certification:
-
CE, EMC, Energy Star, FCC, LVD, RoHS, UL
- Warranty(Year):
-
5
- Place of Origin:
-
Guangdong, China (Mainland)
- Brand Name:
-
CESP / Spirit Lighting
- Color:
-
Yellow(default)
- Application:
-
Road/Garage/street/warehouse.etc..
- Lampshade Material:
-
Tempered Glass
- Lighting fixture:
-
LED
- Power Supply:
-
Meanwell
- Input:
-
AC
- Color Temperature(CCT):
-
Cool White
- Lamp Body Material:
-
Aluminum Alloy
- LED Light Source:
-
Bridgelux, Cree
- Lamp Luminous Efficiency(lm/w):
-
140
- Supply Ability:
- 10000 Piece/Pieces per Month
- Packaging Details
- in foams and carton
- Port
- Shenzhen
Introduction:
1) Unique integrate Die-Cast Aluminum with self- clean feature, enable efficient heat transmit function, effectively increase the life- span of light fixture.
2) Unique Integrated Light distribution system, enable maximization of Light output.
3) With world class quality LED chip and electronic component, enabling reliable quality.
4) High energy saving, energy saving result immediately.
Model No: | CES-L200 | CES-L150 | CES-L120 | CES-L90 | CES-L80 | CES-L60 | CES-L50 | CES-L40 |
Total power: | 185W | 150W | 120W | 90W | 80W | 60w | 50w | 40w |
Description | Replacing 600--800w HPS | Replacing 400--500w HPS | Replacing 300--400w HPS | Replacing 250--300 w HPS | Replacing230--280 w HPS | Replacing 150--200w HPS | Replacing100--150w HPS | Replacing80--120 w HPS |
Reflector/wide angle | Wide angle | Optional for both
| ||||||
Nominal Lumens | 16,650 | 13,500 | 11,160 | 7,650 | 7,200 | 5,580 | 4,250 | 3,720 |
Drive current | 350mA | |||||||
# oF LEDS | 144 | 120 | 120 | 60 | 60 | 60 | 36 | 36 |

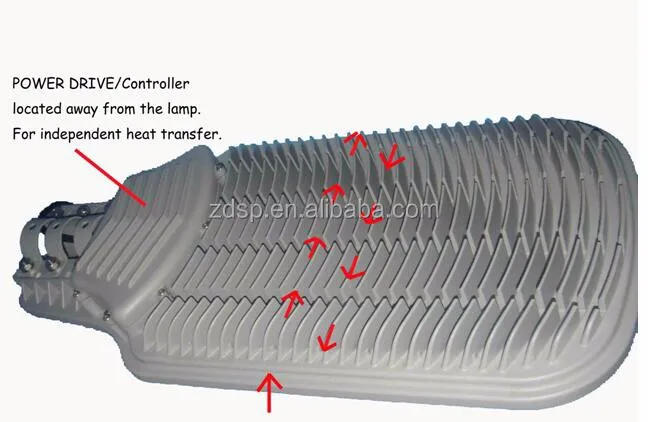

Self clean function

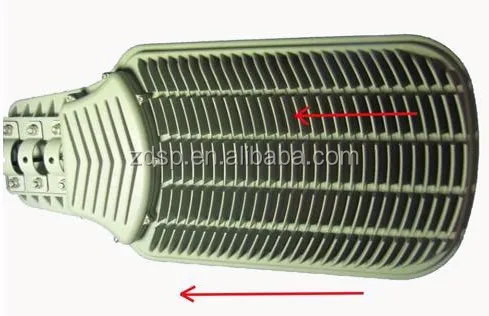

Radiator is designed to be Curved Fin Shape to ensure easy flow of air.
Surface of the Lamp fixture is sprayed with unique paint material.
This material, not only assists in heat transmission to surrounding air, it also prevent dust and any other particle to accumulate or stay on the surface of the lamp fixture.
Combined with the design of the radiator, this results in self clean fixture.


Heat is transmitted upwards, then transferred to the surrounding air, effective structure for the heat to dissipate from the LED. Hence ensuring long lifespan.
The whole lamp shape is angled, therefore, any residue such as dirt or others will wash away during rainfall. Hence making our design self cleaning, resulting in no blocking of the heat sink, ensuring long life span
IP68 Protection Grade
Ingress Protection Grade : IP68 (highest protection grade for waterproof and dustproof).
This is achieved thru materials used and unique design of the water proof body.

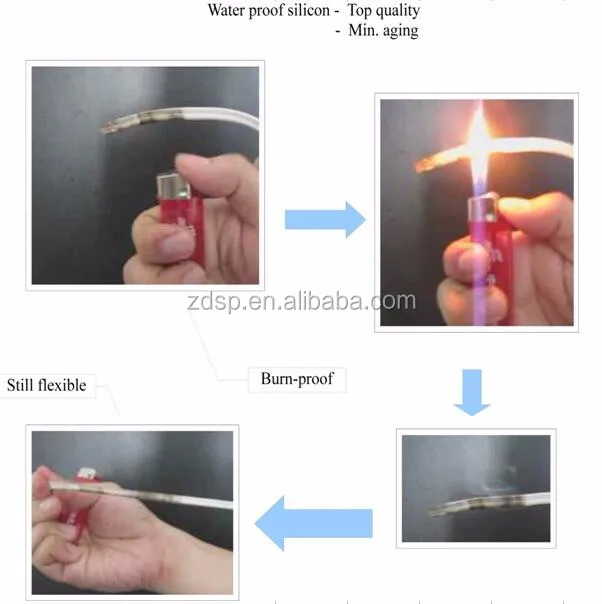

Water proof Silicon: Top quality rubber with anti-low aging and burn-proof characteristic

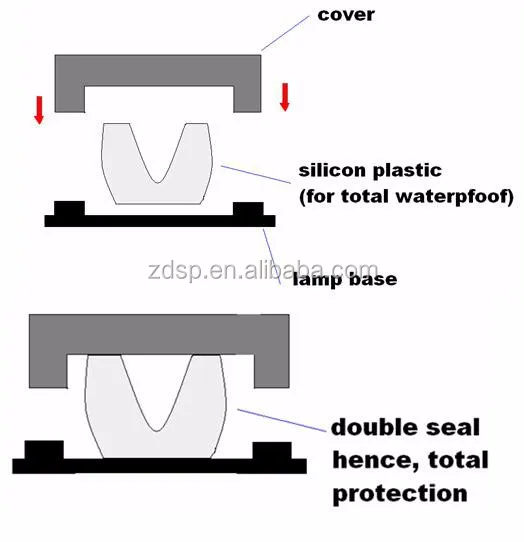

Design of the water proof system on our fixture.

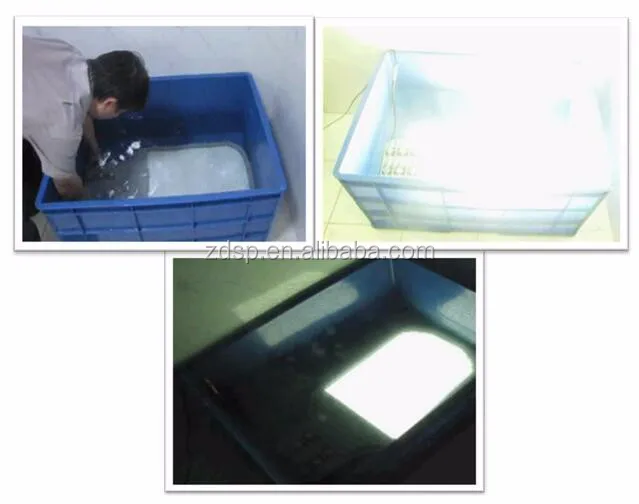

Total water protection

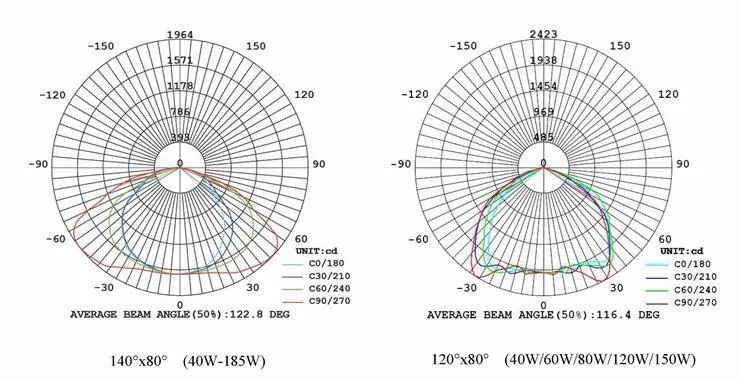

Wide angle series,the beam angle will be 140°*120°
Reflector Series, beam angle will be 120°*80°

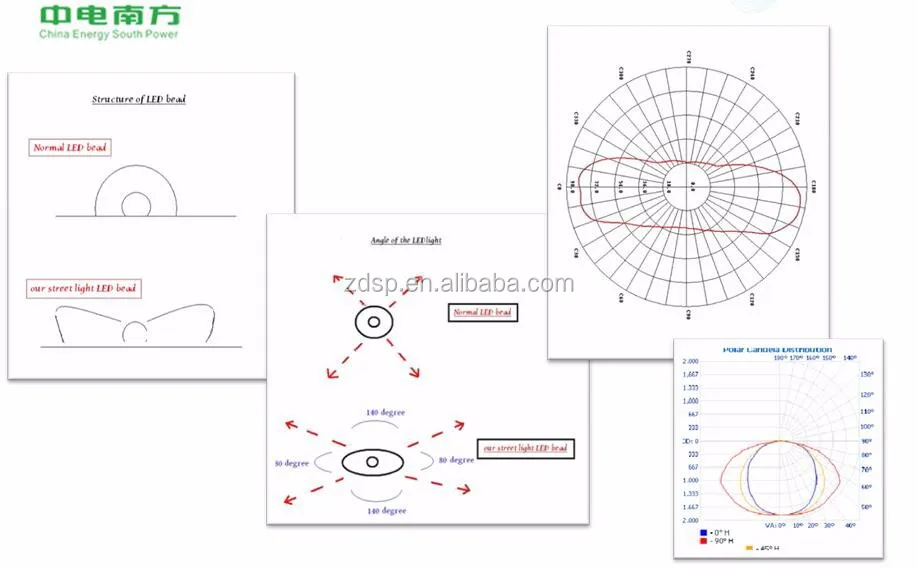

Reflector Series

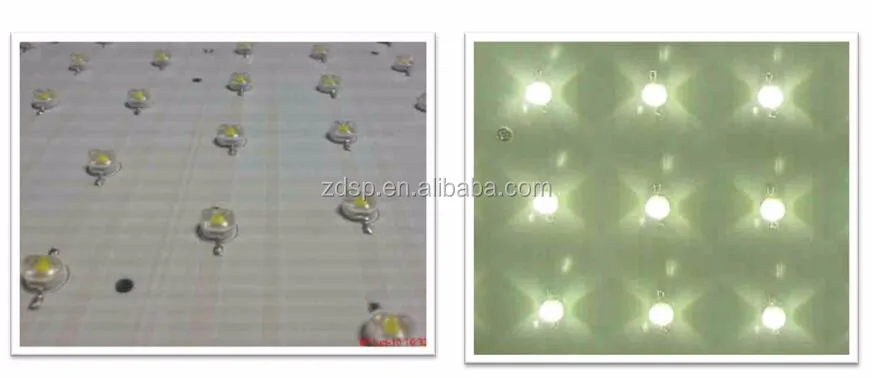

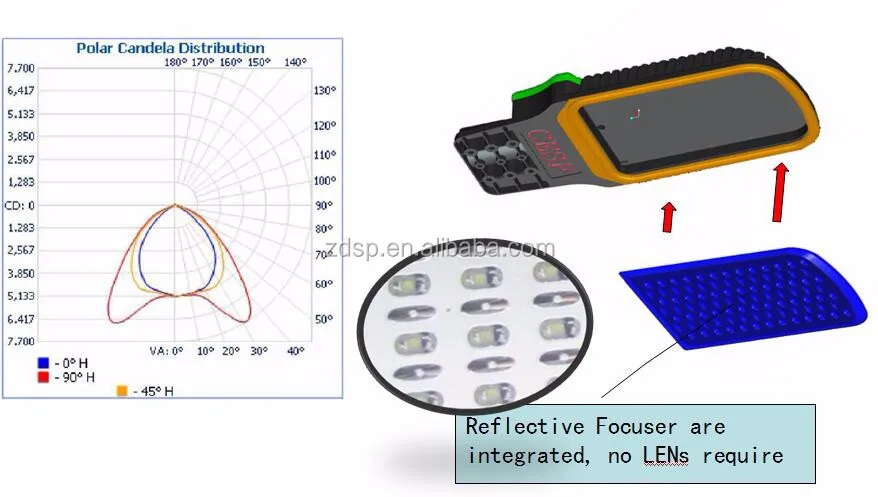

Reflective focuser Integrated to LED chip, therefore, secondary LENS is not needed to adjust angle.
In other word, no further initial light lost due to secondary LENS.
Integrated Reflective focuser’s angle on LED chip are 120°x 60°,(whole lamp angle : refer IES) which is designed to illuminate wide area and suitable for road lighting.
As a result, able to reduce the wattage of light fixture needed to illuminate the same area.


wide angle series

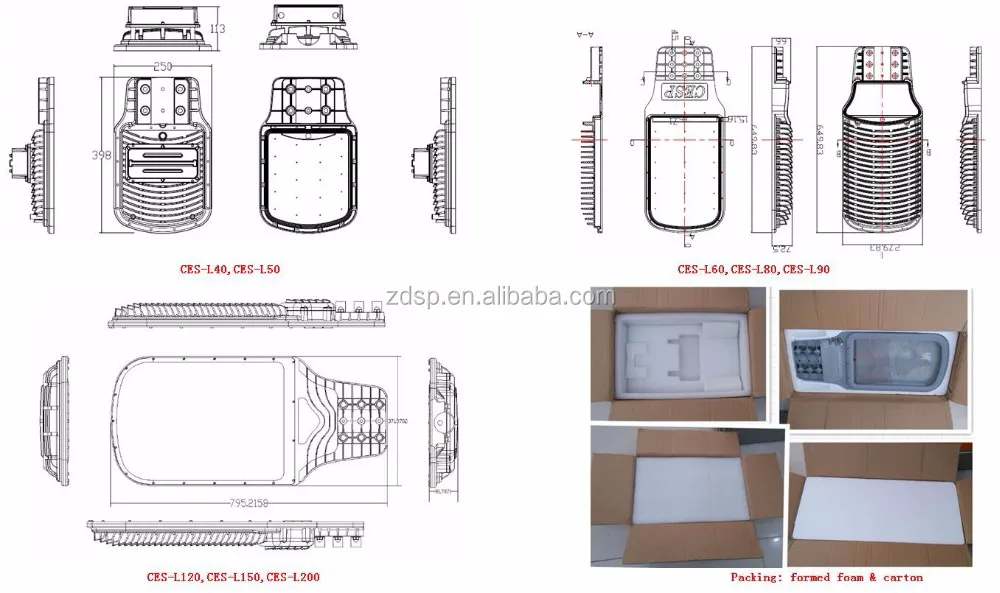

CES-L Series:
1. Insert the lamp into pole.
2. Position the lamp direction and fixed screw into lock position.
3. Fixed screw into lock position,The torque of applied to the screw/bolt is 1.08 kg.m
4. Place the lamp cord into the pole; connect the wire to local power supply (AC100-277V).
