Quick Details

  • Light Source: LED
  • Item Type: Street Lights
  • LED Light Source: bridgelux or cree
  • Input Voltage(V): 100-277
  • Lamp Power(W): 80
  • Lamp Luminous Flux(lm): 8000
  • Lamp Luminous Efficiency(lm/w): 100
  • CRI (Ra>): 70
  • Color Temperature(CCT): Pure White
  • Working Temperature(℃): -40 - 50
  • Working Lifetime(Hour): 100000
  • Lamp Body Material: Aluminum Alloy
  • IP Rating: IP68
  • Certification: CE, EMC, LVD, PSE, RoHS, UL
  • Warranty(Year): 5
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Spirit Lighting
  • Model Number: CES-L80
  • Lampshade Material: Toughened Glass
  • Application: garden/street/highway
  • Lighting Bulbs & Tube: LED Bridgelux
  • Housing: Die cast aluminum alloy
  • Power driver: Meanwell driver

Packaging & Delivery

Packaging Details in foams and cartons
Delivery Time 7 days

40W 50W 60W 70W 80W 90W 120W 150W 185W  UL IP68 CE ROHS CUL passed top quality led street light,led streetlight




Product Description



Strenth:



- Protecting Grade: The highest IP68

- CE, RoHS, UL, cUL  passed
- 5 years warranty led chip



Introduction:



1, Unique integrate Die-Cast Aluminum with self- clean feature, enable efficient heat transmit function, effectively increase the life- span of light fixture.

2, Unique Integrated Light distribution system, enable maximization of Light output.

3, With world class quality LED chip and electronic component, enabling reliable quality.

4, High energy saving, energy saving result immediately.





Key Feature:



- 50,000 to 100,000 hours’ life, 10 times long as fluorescent lamp

- Die-cast aluminum by 1800 Ton of pressure to make the body strong enough.

- Powder Coated (similar to vehicle’s coating) and holder are cover with a thin layer of Zink, color can be customizable.

- IP 68, highest rating of protection.

- Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.

- 5 year warranty.

- Best driver: Meanwell driver.







Specifications:





Total Power Consumption

80w

Initial Luminous Flux

≥ 8,000 lm

LED chip

60 pc 700ma USA BridgeLux

Luminous Efficacy (/Efficiency)

120lm-130lm @ 350ma

(350ma = 1Watt)

Fixture Luminous Flux

≥ 6,560lm

Illuminant:

Equivalent to HPS 230-280 W*

Input Voltage

100-277VAC

Frequency Range:

50/60HZ

Power Factor:

≈ 0.98

Power Efficiency:

≈ 90%

CRI:

≥ 70

Color Temperature:

Warm White      : 2700-3500K

Day Light White   : 5500-6500K

Drive Style

Professional Static Sonatant Current

Protection Grade:

IP68

ht Body & Lampshade Material

High Pressure integrated die-casting Aluminum alloy housing

& Toughened Tempered Glass



Working Temperature:

-40°C to 50°C

Net Weight (lamp):

10 KG

Lifespan:

50,000-100,000 hour

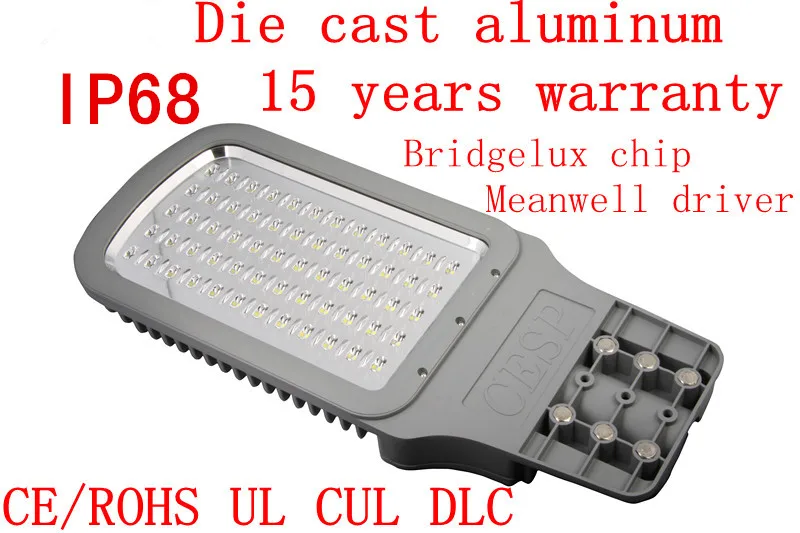

Product image:

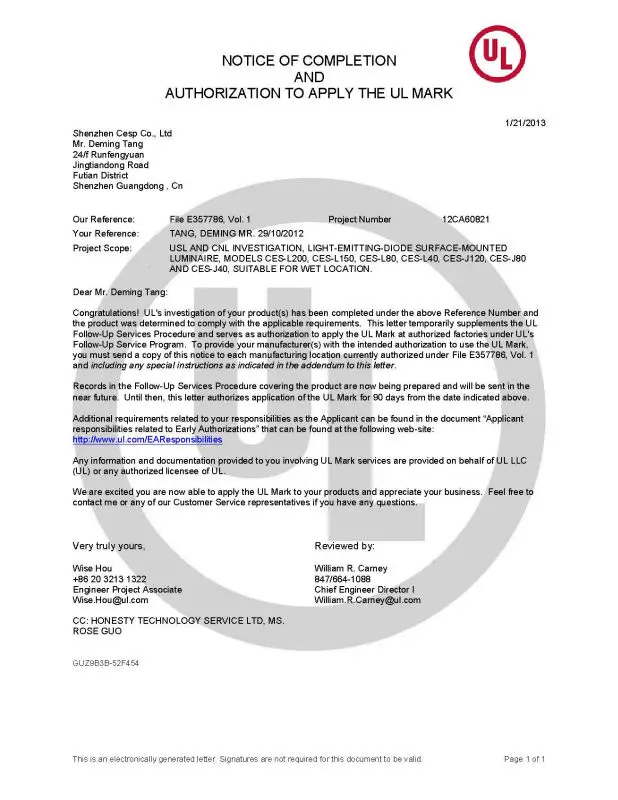

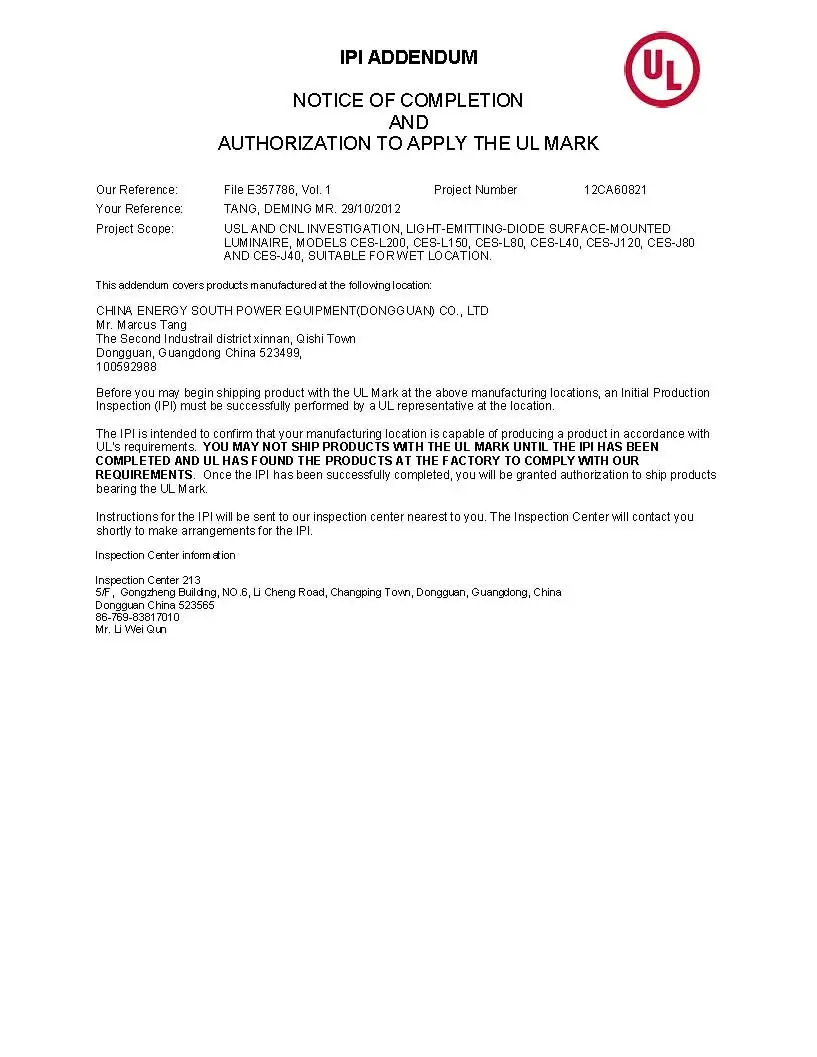

Certification:











Factory show:











Why us?

1). Original the superconducting heat ADC12 die-cast aluminum arc heat sink system, exponentially increase the natural cooling area, and has super air convection cooling function, effectively extending the lamp life and improve the use of performance.

2). Original designed die casting lamp shell completely closed, and the use of high-performance waterproof and fireproof silicone, protection grade IP68 waterproof anti-leakage effectively prevent the failure occurred, safe and reliable.

Experienced production team and quality control team make sure the better quality.

3). Unique heat sink wash tank design and anti-dust, anti-corrosion  material, make lamp shell has a self-cleaning function, effectively prevent the accumulation of dust, grease, to protect lighting performance.

4). Original second optical design of the the integrated overall mirror condenser Cup and diamond-shaped reflector cone, utilized the light energy and greatly enhanced lighting effects.

5). Gas station lights, tunnel lights, stadium lights series by the Chinese explosion-proof certification, and has passed CE, RoHS, UL, cUL certification.
