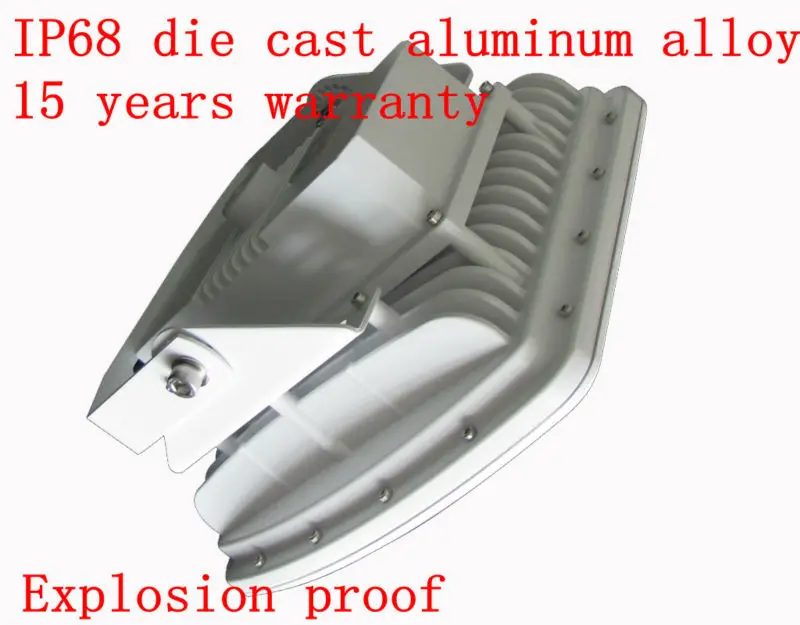

4000lm-5500lm LED explosion proof emergency light for coal mine gas station underground workhouse

FOB Reference Price:Get Latest Price
$100.00 - $280.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Input Voltage(V):
AC85-265
Lamp Power(W):
120
CRI (Ra>):
75
Lamp Luminous Flux(lm):
10800
IP Rating:
IP68
Working Lifetime(Hour):
50000
Working Temperature(℃):
-40 - 50
Emitting Color:
White
Certification:
CE, Energy Star, RoHS, UL
Place of Origin:
Guangdong, China (Mainland)
Base Type:
Bracket
Brand Name:
CESPE
Model Number:
CESP-J120
Light Source:
LED
Body:
Die-cast Aluminum alloy
Color:
cool White and warm white
Input Voltage:
85V-265V
Life:
50000-100000hours
warranty:
5 years
Power driver:
Meanwell
Item Type:
Explosion-proof Lights
Color Temperature(CCT):
Cool White
LED Light Source:
Bridgelux/cree
Lamp Luminous Efficiency(lm/w):
95
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
in foam and cartons
outside carton size: 460x460x240mm
G.W.: 12.5kgs
N.W.:11.5kgs
Port
SHENZHEN
Lead Time :
7 days

Unique and patented gas station led light,with CE ROHS UL CUL IP68 certification,and CNEX ATEX anti-explosive certification.



UL CUL CE led fire proof light fixture 40w 60w 80w 100w 120w :



Input voltage :85V-265V

Frequency range :50-60HZ

Power factor :>0.96

Luminous effeciency :>90lm/W

CRI :~70

Drive style :professional static sonatant current

Life : 50000-100000hours

Colour temperature :3000-7000K

Working temperaure: -30°C~+60°C

Net weight:8.5kg



Total Power Consume

 120w

Whole Fixture Lumen

10800 lm

LED Chip/Brand

Bridgelun or Cree

LED Efficacy

120lm-130lm@350Ma

Illuminant

Equal to HPS 400-500w

Input voltage

AC100~277V

Frequency

50/60Hz

Power Factor

> 0.976

Driver Efficiency

>90%

Color Rendering Index

CRI 70

Color Temperature

Warm White: 2700K-4000K

Cool White: 5500-6500K

Driver

Meanwell HLG Series

Protection Grade

IP68

Body Material

Die Cast Aluminum

Dimension

300*300*175mm

Packing Size

370*370*230mm

Feature

Anti Explosive: Class E – Gas filled environment- ExemⅡT6 Gc e class

Operating Environment:

-40°C~+50°C,

LED Chip

USA Bridgelux chip or Cree chip

LED Life Span

>50,000-100,000 hours

Housing material

ADC12 high thermal conductivity material, anti-dust thermal conductivity coatings

Protection screen material

4mm(thickness) toughened glass

Net weight

12.5kg











Packing Info.



Packing Information

Item Size:

300*300*175mm

N.W (Kg):

12.5 Kg

Carton Size:

370*370*230mm





Qty per Carton:

1 Unit / Carton















  Structure & Outlook



Lamp Body:

            Japan Imported material:  ADC12 Aluminum Alloy to form the whole lamp body

            High pressure (1800ton) Die-Cast directly into lamp shape.

            As a result of Die-Cast,  no gaps hence, no space for dust to accumulate.

            LED Chip : USA bridgelux chip BXCB45 or Cree XPE.  Performing at 140lm-150lm@ 350ma (350ma is slightly over 1 watts).

           Aluminum PCB board : Thickness 2.0mm with heat transmission index of 2.



QC Control

            Every product will go through vibration testing to test every connection point in lamp is well connected to ensure every part performs with highest reliability.

            Light parameter testing equipment to test the photometric performance to ensure every lamp meets the lumen and lux requirements and standards.

             Salt-water spraying equipment to test the waterproof ability and lamp surface’s anti-oxidization ability to ensure lamp ability against rusting.
