Quick Details

  • Light Source: LED
  • Item Type: Street Lights
  • LED Light Source: Bridgelux / CREE
  • Input Voltage(V): AC85-265V
  • Lamp Power(W): 80
  • Lamp Luminous Flux(lm): 8000
  • Lamp Luminous Efficiency(lm/w): 100
  • CRI (Ra>): 80
  • Color Temperature(CCT): Cool White
  • Working Temperature(℃): -40 - 50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum Alloy
  • IP Rating: IP68

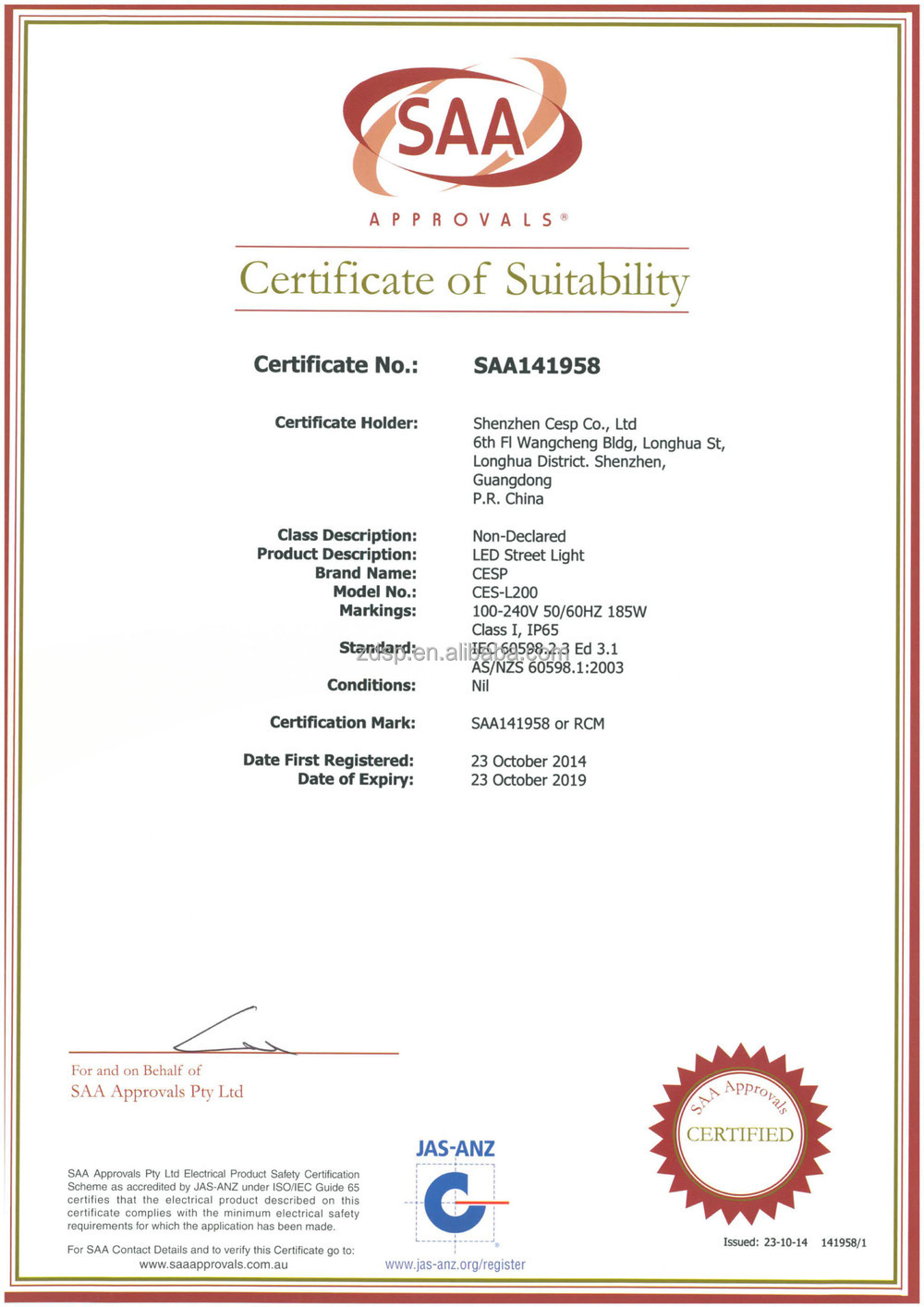

  • Certification: CE, Energy Star, PSE, RoHS, SAA, UL
  • Warranty(Year): 5
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: CESP Spirit Lighting
  • Model Number: CES-L80 / CES-L80-RF
  • LED Qty: 60pcs
  • Power Factor: ~0.98
  • Total Harmonic Distortion: < 10%
  • Rated Life: 50,000+ hrs

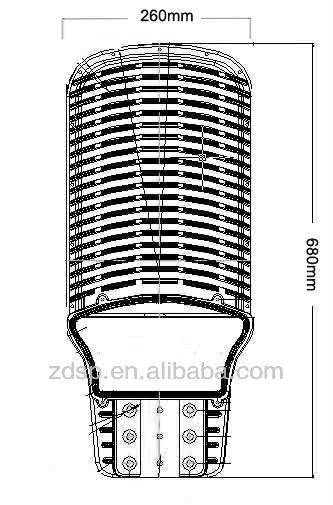

  • Size: 650*260*82.8mm
  • Certificate: SAA / CE/UL/cUL/DLC
  • warranty: 5 years
  • Housing: Die Cast Aluminum ADC 12#
  • Beam Angle: 120°x80°(RF) 140°X80°
  • IP Rate: IP68

Packaging & Delivery

Packaging Details export packing
Delivery Time 15-18 days upon payment

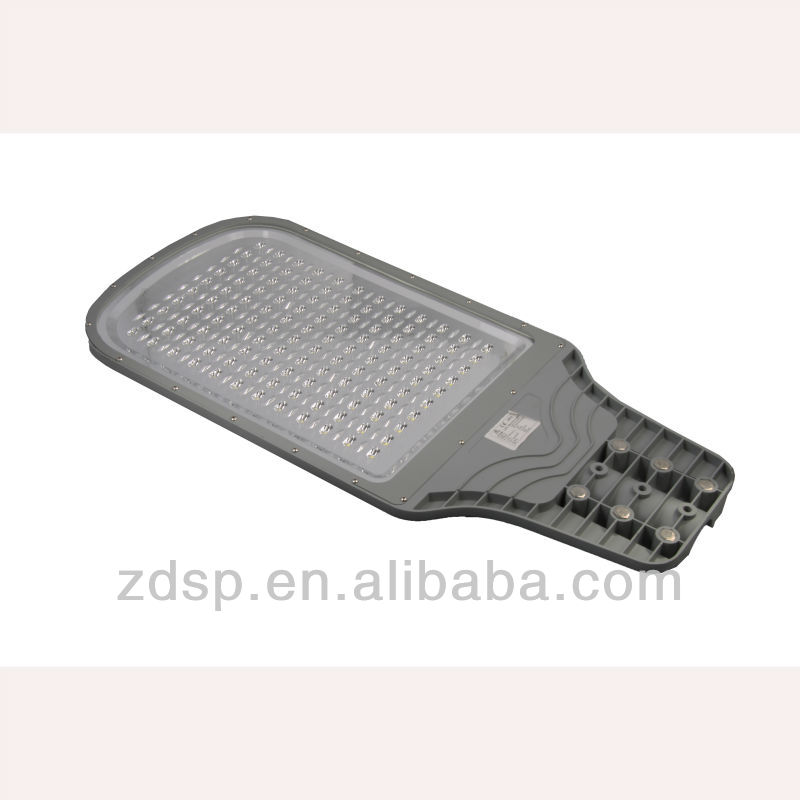

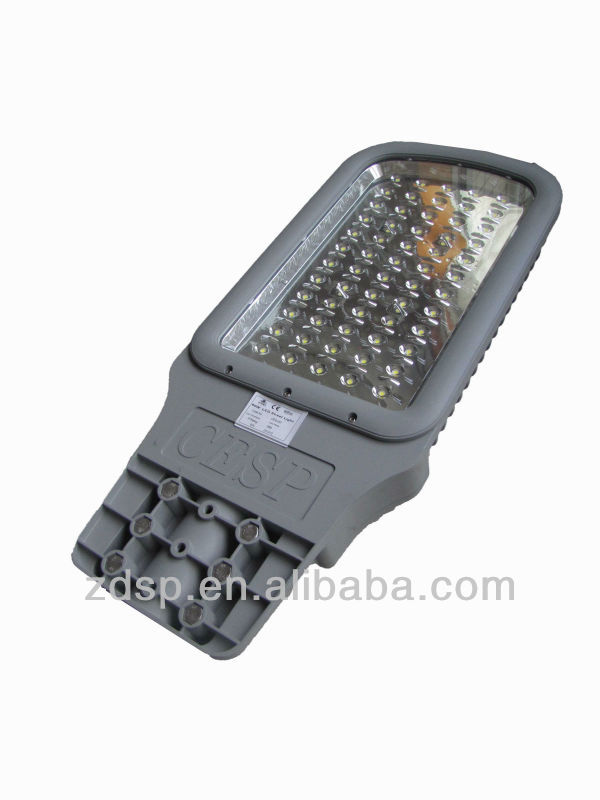

  SAA /  DLC / UL / cUL / CE / RoHS Approved 80W LED Street Light with Bridgelux / CREE Chip Meanwell HLG Driver

  UL Certification No.: E357786

  for DLC certificate, pls refer to  http://www.designlights.org/ , and search by key words "CES-J"





Note

ITEM NO.

DESCRIPTION

TOTAL

 POWER

Reflector/

wide angle

NOMINAL

LUMENS

DRIVE

CURRENT

# OF

LEDS

SYSTEM

EFFICACY

CE Certify

CES-L50

Replacing 100-150w HPS

50

Optional for both

4,250

450 mA

36

85 LM/W

UL & CUL

/CE Certify

CES-L40

Replacing 80-120w HPS

40

Optional for both

3,720

350 mA

36

93 LM/W

Note

ITEM NO.

DESCRIPTION

TOTAL

POWER

Reflector/

wide angle

NOMINAL

LUMENS

DRIVE

CURRENT

# OF

LEDS

SYSTEM

EFFICACY

CE Certify

CES-L90

Replacing 250-300w HPS

90

Optional for both

7,650

450 mA

60

85 LM/W

UL & CUL

/CE Certify

CES-L80

Replacing 230-280w HPS

80

Optional for both

7,200

350 mA

60

90 LM/W

CE Certify

CES-L60

Replacing 150-200w HPS

60

Optional for both

5,580

300 mA

60

93 LM/W



Note

ITEM NO.

DESCRIPTION

TOTAL

POWER

Reflector/

wide angle

NOMINAL

LUMENS

DRIVE

CURRENT

# OF LEDS



SYSTEM

EFFICACY

UL & CUL /

CE Certify

CES-L200

Replacing 600-800w HPS

185

Wide angle

16,650

350 mA

144

90 LM/W

UL & CUL /

CE Certify

CES-L150

Replacing 400-500w HPS

150

Optional for both

13,500

350 mA

120

90 LM/W

CE Certify

CES-L120

Replacing 300-400w HPS

120

Optional for both

11,160

300 mA

120

93 LM/W
