high efficency LED street light Replacing 250-300w HPS

FOB Reference Price:Get Latest Price
US $290-330 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Street Lights
LED Light Source:
High quality Bridgelux 700Ma 45Mi
Input Voltage(V):
AC90-305V
Lamp Power(W):
90
Lamp Luminous Flux(lm):
7650
Lamp Luminous Efficiency(lm/w):
85
CRI (Ra>):
85
Color Temperature(CCT):
Cool White
Working Temperature(℃):
-30 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP68, IP68
Certification:
CCC, CE, ETL, FCC, RoHS, UL
Warranty(Year):
5
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
CESP
Model Number:
CES-L150
szie:
L795*W372*H82.8mm
Light Color option:
cool white, warm white
AC input:
85-265V
power factor:
~0.98
Certificate:
UL,CE,RoHS,DLC
total harmonic distortion:
<10%
working temperature:
-30-50
lifespan:
100,000H
energy saving:
up to 70~80%
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
export packing
Port
Shenzhen
Lead Time :
12-15 days after order confirmed

Specifications

high efficiency low power consumption
environment friendly, no IR, no UV
long lifespan over 50000H
Wide AC input
CE, UL,RoHS





Note

ITEM NO.

DESCRIPTION

TOTAL POWER

Reflector/wide angle

NOMINAL LUMENS

DRIVE CURRENT

# OF LEDS

SYSTEM  EFFICACY

UL & CUL /CE Certify

CES-L200

Replacing 600-800w HPS

185

Wide angle

16,650

350 mA

144

90 LM/W

UL & CUL /CE Certify

CES-L150

Replacing 400-500w HPS

150

Optional for both

13,500

350 mA

120

90 LM/W

CE Certify

CES-L120

Replacing 300-400w HPS

120

Optional for both

11,160

300 mA

120

93 LM/W

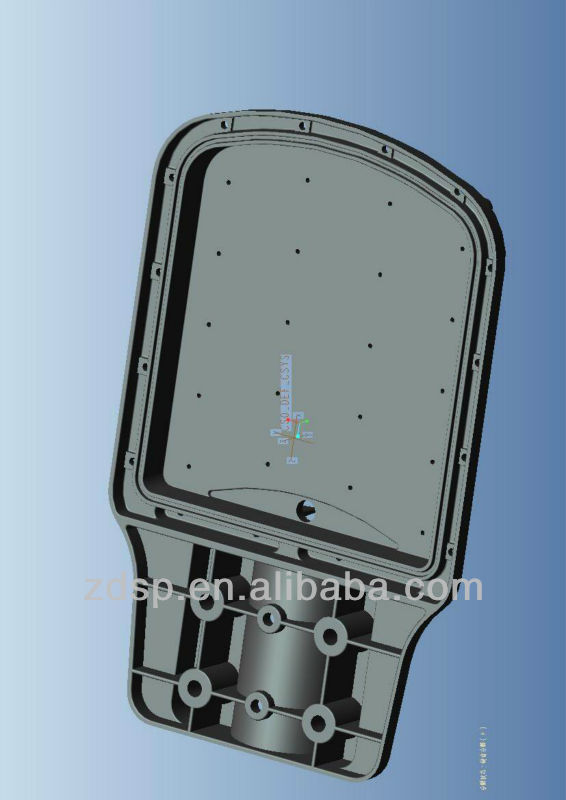

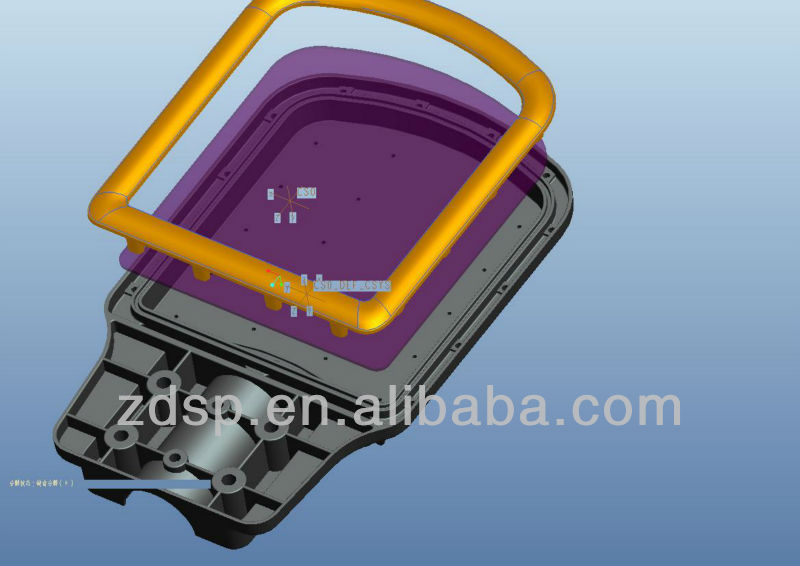

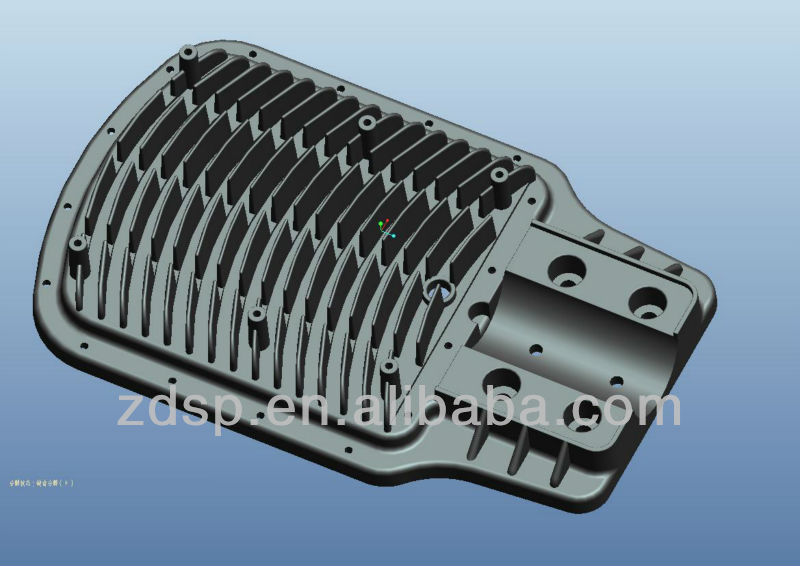

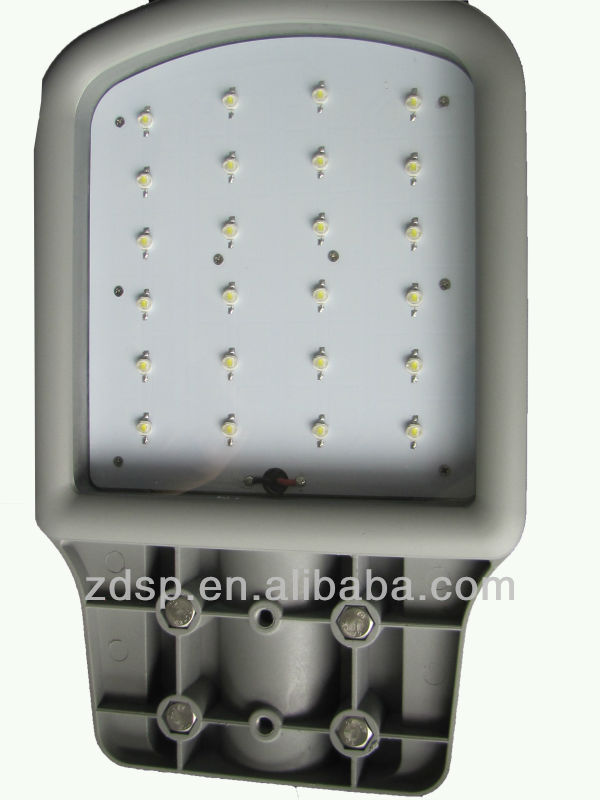

IMG_51742.jpg1.jpg400x250 street light.jpg400x250 street light01.jpgIMG_51722.jpg

*actual product may vary from picture show.

LED Street LightPole Mount



LED LIGHT ENGINE

Ø High quality Bridgelux 700Ma 45Mil

Ø Efficacy : up to 150lm @ 350Ma (per watt)

Ø Rated Life of 100,000+ hrs

Ø Operation temp: -30 ºC to +50 ºC

Ø No toxic chemicals/Rohs compliant

Ø 70%-80%  saving compare to HPS/MH



PRODUCT FEATURE

Ø 5 years warranty

Ø Highest Ingress Protection rating : IP68



*Total power consumption may vary due to installation location.



Perfection is the Goal



APPEARANCE

Ø Material:   Die Cast Aluminum

Ø Light Color option:  Cool White

Warm White

Custom color

Ø LENS:  Super Clear Tempered Glass



ELECTRICAL CHARACTERISTICS

Ø Wide AC input:  90-305 VAC

Ø (UL marking: 100-240VAC/277VAC)

Ø Power Factor: ~0.98

Ø Total Harmonic Distortion: < 10%

Ø Surge protection: IEC/EN 61000-4-5

Ø EMC test standard





blue street light.jpg
